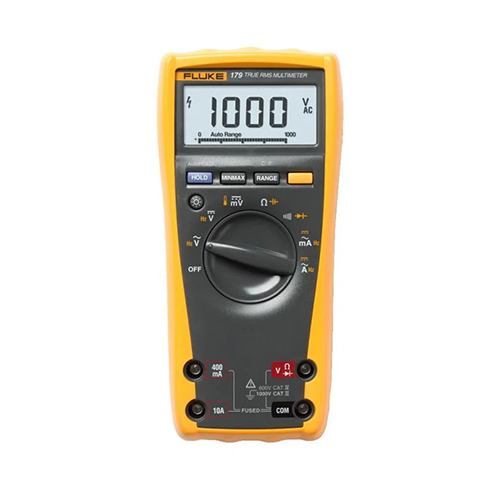

Fluke 179 Digital Multimeter and EDA2 Accessories Kit
Product Description
The Fluke 179 True-rms digital multimeter is the industry-standard troubleshooting tool for electrical and electronic systems. The included 80BK-A Integrated digital multimeter temperature probe eliminates the need to carry a separate thermometer. You can hang your meter where it's easy to see with the TPAK ToolPak™ Magnetic Meter Hanger, included in the kit. The C35 soft carry case that keeps everything ready to take with you includes three SureGrip™ accessories: TL224 Insulated Test Leads, AC280 Hook Clips, and TL910 Electronic Test Probes.
Features
- A full-featured, precision multimeter for troubleshooting electrical and electronic systems
- Delivers accurate true-rms ac current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
- SureGrip™ test leads, test probes and alligator clips
- Includes ToolPak magnetic meter-hanger for easy viewing when using two hand to make measurements
Specifications
Weight:
420 g
Dimensions:
43 x 90 x 185 mm
Alkaline Battery Life:
About 200 hours typical, without backlight
Operating Temperature:
-10 to 50°C
Storage Temperature:
-30 to 60°C
Humidity (without condensation):
0 to 90% (0 to 35°C)
0 to 70% (35 to 50°C)
Voltage DC:
Accuracy: ±(0.09% + 2)
Max. Resolution: 0.1 mV
Maximum: 1000 V
Voltage AC:
Accuracy: ±(1.0% + 3)
Max. Resolution: 0.1 mV
Maximum: 1000 V
Current DC:
Accuracy: ±(1.0% + 3)
Max. Resolution: 0.01 mA
Maximum: 10 A
Current AC:
Accuracy: ±(1.5% + 3)
Max. Resolution: 0.01 mA
Maximum: 10 A
Resistance:
Accuracy: ±(0.9% + 1)
Max. Resolution: 0.1 Ω
Maximum: 50 MΩ
Capacitance:
Accuracy: ±(1.2% + 2)
Max. Resolution: 1 nF
Maximum: 10,000 μF
Frequency:
Accuracy: ±(0.1% + 1)
Max. Resolution: 0.01 Hz
Maximum: 100 kHz
Temperature:
Accuracy: ±(1.0% + 10)
Max. Resolution: 0.1°C
Range: -40 to 400°C
Overvoltage Category:
EN 61010-1 to 1000 V CAT III
EN 61010-1 to 600 V CAT IV
Agency Approvals:
UL, CSA, TÜV listed and VDE Pending
Product Codes
- Mfr Part No:FLUKE-179/EDA2
- EDMO #:FLUKE179ED
- Brand:FLUKE
