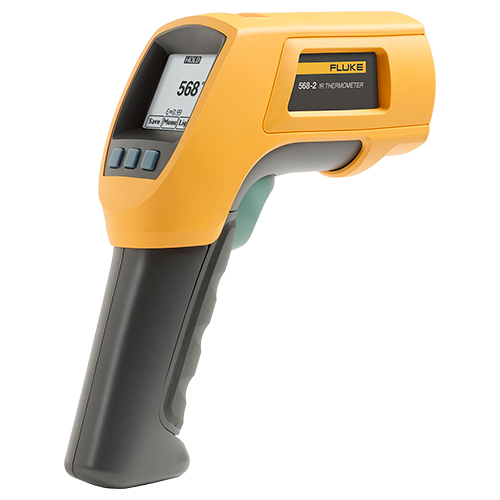

Fluke 568 Contact & Infrared Thermometer
Product Description
The Fluke 568 Infrared Thermometer is a combination contact and non-contact thermometer in one. It offers a wider temperature range than most other infrared thermometers while offering users more features controlled through an intuitive graphical display and menu.
The simple, three-button on-screen menu interface (in 7 languages) is quick to use and makes even complex measurements easy. It takes just a few pushes of a button to adjust emissivity, record data, or turn on and off alarms. The 50:1 distance-to-spot ratio allows you to measure smaller objects from further away.
Features
Includes:
- Thermocouple K bead probe
- Durable hard case
- 2 AA batteries
- Getting Started guide
- USB cable
- FlukeView® Forms software on CD
- User’s Manual on CD
Features:
- Allows easy access to advanced features with soft-key buttons and graphical display
- Captures up to 99 points of data for quick downloading to a PC through the USB connection
- Includes FlukeView® Forms software for easy trending and data analysis
- Can be powered from your laptop via the USB to extend battery life
- Quickly identifies problems with MIN, MAX, AVG, and DIF functions
- Allows you to confidently measure a wide variety of surfaces with adjustable emissivity and a built-in materials table
- Easily adapts to lighting conditions with a two-level backlight
- Instantly alerts to measurements outside of set limits with audible and visual alarms
- Provides 1% measurement accuracy
Specifications
Infrared Temperature Range:
-40°C to 800°C (-40°F to 1472°F)
Infrared Accuracy:
< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F)
> 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Display Resolution:
0.1°C / 0.1°F
Infrared Spectral Response:
8 µm to 14 µm
Infrared Response Time:
< 500 msec
Laser Sighting:
Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm
Minimum Spot Size:
19 mm (0.75 in)
Emissivity Adjustment:
By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
Data Storage with Date/Time Stamp:
99 points
PC Interface and Cable:
USB 2.0 with FlukeView® Forms software
Hi/Low Alarms:
Audible and two-color visual
Display:
Dot matrix 98 x 96 pixels with function menus
Backlight:
Two levels, normal and extra bright for darker environments
Power:
2 AA/LR6 Batteries and USB when used with a PC
Battery Life:
Laser and backlight on: 12 hours
Laser and backlight off: 100 hours
Operating Temperature:
0°C to 50°C (32°F to 122°F)
Storage Temperature:
-20°C to 60°C (-40°F to 140°F)
Bead Thermocouple Type-K Range:
-40°C to 260°C (-40°F to 500°F)
Bead Thermocouple Type-K Accuracy:
±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F)
Typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
Product Codes
- Mfr Part No:FLUKE 568
- EDMO #:FLUKE-568
- Brand:FLUKE
- Category:Wire & Cable Testers
