Fluke 353 True RMS 2000A Clamp Meter

Product Description

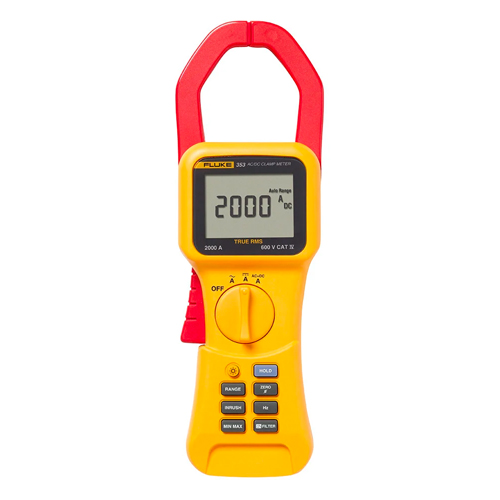

Confidently take reliable readings with the Fluke 353 True RMS digital clamp meter. The Fluke 353 is the tool of choice for high current clamp-on amp meter measurement up to 2000A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements. Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads.

Features

Includes:

FLUKE 353 clamp meter, C43 Soft carrying case, 6 AA batteries, and user manual

Features:

Reliably handle a wide range of high-current applications with 2000 A AC + DC true-rms, 1400 A ac, and 2000 A DC
The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
CAT IV 600 V, CAT III 1000 V rating for added user protection
In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability
Accurately measure frequency up to 1 kHz for optimum troubleshooting
Quickly analyze readings using the MIN, MAX, and AVG functions
A large backlit display allows for easy visibility in low-lit areas
Use the display hold feature to capture readings even when the display cannot be viewed
Use the low-pass filter to smooth out noisy loads and stabilize readings

Specifications

Weight:
0.814 kg (1.8 lb)

Jaw Size:
58 mm (2.28 in)

Dimensions:
300 x 98 x 52 mm (12 x 3.75 x 2 in)

Batteries:
Six 1.5 V AA NEDA 15 A or IEC LR6

Battery Life:
100 hours (with typical usage, backlight off)

Test Leads:
Rated to 1000 V

Safety Rating:
IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III

Operating Temperature:
32°F to +122°F (0°C to +50°C)

Storage Temperature:
-4°F to 140°F (-20°C to +60°C)

Operating Humidity:
0 to 95% (non-condensing)

Operating Altitude:
2000 m

Storage Altitude:
10,000 m

IP Rating:
IP42 (indoor use only)

Drop Test Requirements:
1 m

EMI, RFI, EMC:
FCC part 15, IEC/EN 61326-1:1997 class B
IEC/EN 61326:1997 3V/m, performance criteria B, EN61325
