VHF Aircraft Transceiver Radio | 118 to 137 MHz, 11–33 V
Product Description

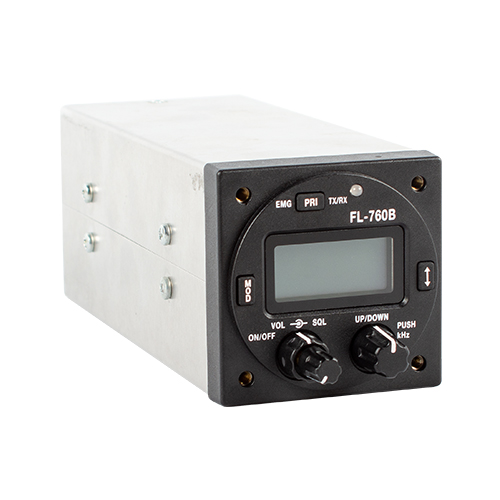

The FL-760B transceiver radio is one of the lightest in the industry at just under 1 lb. It provides a frequency range of 118 to 137 MHz with a 5 watt transmitter and 11–33 volt power supply. The built-in 2-place VOX intercom is sensitive and perfect for small aircraft cockpits. Frequencies can be easily switched with the "flip/flop" option or use scan mode to sift through 32 programmable frequencies. Additionally, there is a single 121.50 emergency frequency only button.
The FL-760B offers upgraded Push-to-Talk (PTT) feature and audio inputs are separate for pilot and co-pilot. Intercom, VOX, volume and mic gain adjustments are conveniently programmable from the front panel. This transceiver is ideal for noisy cockpits providing very clear reception, minimal squelch, and clear output.
Features
Includes:

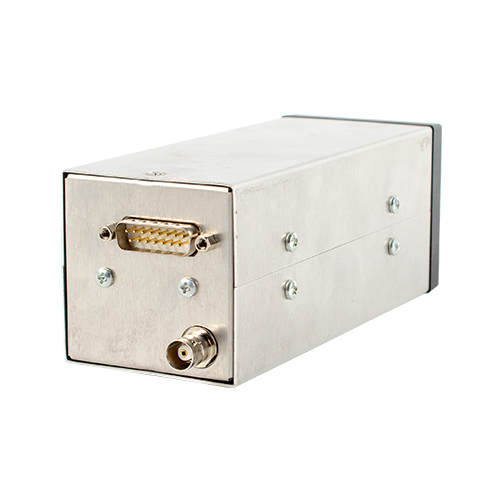

- 15-pin sub D connector
- Install kit
Features:
- Built-in 2-place VOX intercom
- Easily select channels via the 32 programmable memory channel call-up, emergency button, or scan function
- Not plug compatible with certain features (power and ground are plug compatible)
- Separate PTT and audio inputs for pilot and co-pilot
- Intercom, VOX, volume and mic gain adjustments are programmable from front panel
- Weighs less than 1 lb

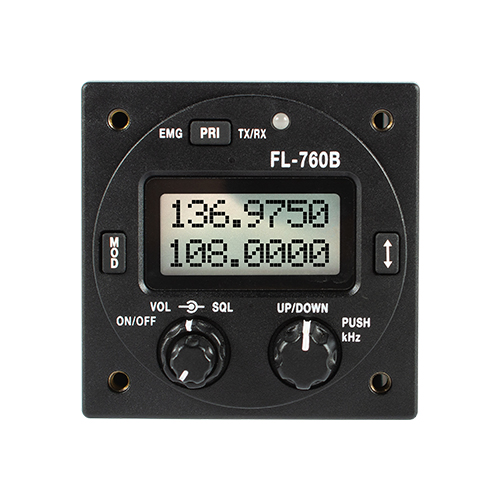

- Backlit display for easy reading
- Pilot can select the receive notification LED color via the front panel
Specifications
Weight:
430 g
Dimensions:
61 x 159 x 61 mm
Frequency Range:
118.00 to 136.975 MHz
Channel Spacing:
25 kHz
Mode:
AM(6K00A3E)
Memory Channels:
5
Power Supply:
11.7 V or 33 VDC (negative ground only)
Usable Temperature Range:
-20ºC to +60ºC
Frequency Stability:
+/- 5 ppm
Current Drain:
TX: 3A(max) RX 0.8A(max)
TRANSMITTER:
Output Power:
5W
Modulation:
Small stage modulation
Modulation Limiting:
70 to 100%
Audio Harmonics Distortion:
Less than 15% (at 85% modulation)
Hum and Noise Ratio:
More than 40 dB
Spurious Emissions:
-16Bm or less
Antenna Impedance:
50Ω
RECEIVER:
Receive System:
Double conversion superheterodyne
Intermediate Frequency:
1st: 38.85 MHz (upper) 2nd: 450 kHz (lower)
Sensitivity:
(at 6dB S/N) less than 1 uV
Squelch Sensitivity:
0.5uV (threshold)
Selectivity:
More than ±8kHz (at 6dB), Less than ±25kHz (at 60dB)
Spurious Response Rejection:
More than 60 dB
Audio Output Power:
More than 4W (at 4Ω)
Side Tone:
More than 100mW (at 600Ω)
Hum and Noise:
More than 30 dB
Audio Output Impedance:
Ext. SP 4Ω (4 to 8Ω), Side tone 600Ω
Product Codes
- Mfr Part No:FL-760B
- EDMO #:FL-760B
- Brand:EDMO DISTRIBUTORS, INC
- Category:Airband Communications
