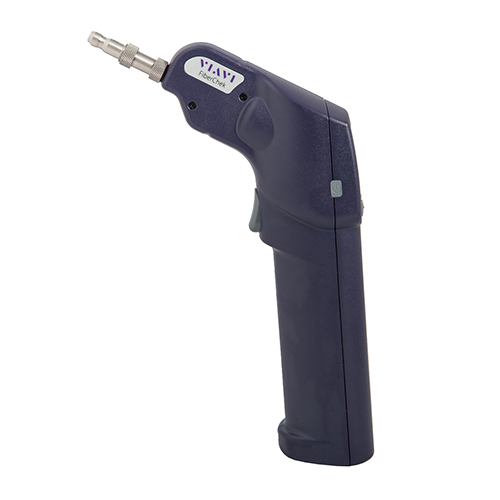

FiberChek Probe Microscope | Kit 2
Product Description
The FiberChek probe is an all-in-one handled fiber inspection tool. FiberChek automates inspection workflow for fast and accurate performance. FiberChek integrates with other Viavi test devices to significantly improve productivity when you use them together. FiberChek can function independently of another test device, saving time by letting technicians test their next ports while an existing test is still in process.
Version FIT-FC-KIT2 includes the FiberChek probe, case, FBPT-LC, FBPT-SC, FBPT-U12M, FBPT-U25M, and tip case.
Features
- Achieve fully autonomous inspection with an all-in-one solution
- Automate inspection workflows
- Ensure accurate and fast test performance
- Easily access connections anywhere
- Connect with other Viavi instruments and mobile devices
- Integrated touch screen with live fiber viewing
- Auto-center
- Auto-focus
- Built-in fiber end-face analysis
- User-selectable acceptance profiles
- Stores results on device or exports
- Connects via WiFi and USB
Specifications
Weight:
9.5 oz
Dimensions:
2.0 x 5.2 x 8.6 in.
Display:
128 x 128 x 1.5 in OLED touch screen
Connector:
USB 2.0 (micro-B)
Power source:
Internal LiON battery, USB power
Charge time:
2 hr (2 A max power source)
8 hr (500 mA max power source)
Power supply:
5 V, 2 A with interchangeable wall plug for EU, UK, US, and AU
Camera sensor:
2560 x 1920, 1/2.5 in CMOS, 5 megapixel
Particle size detection:
<1 µm
Built-In LCD resolution (in pixels):
Live image 128 x 120
Light source:
Blue LED, 100,000+ hr life
Lighting technique:
Coax
Operating Temperature:
0°C to 50°C (32°F to 122°F)
Certification:
CE, EN/IEC 61326
Product Codes
- Mfr Part No:FIT-FC-KIT2
- EDMO #:FITFCKIT2
- Brand:VIAVI
- Category:Fiber Optic Inspection
