OLP-82 SmartClass Fiber Pro Kit
Product Description

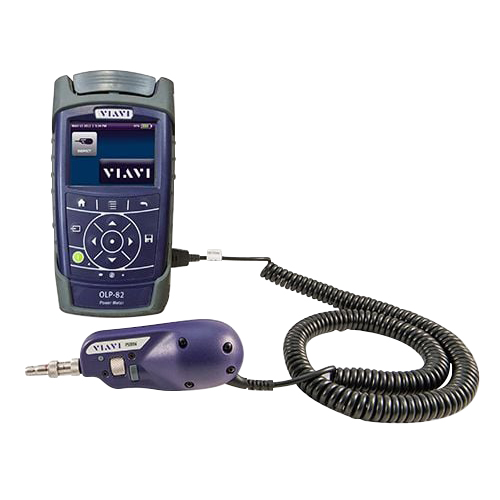

The VIAVI FIT-8201-PRO SmartClass Fiber OLP-82 Pro Kit combines the P5000i fiber inspection microscope, digital video display and integrated OPM for automated inspection and certification of fiber end-face quality, plus optical power measurements. It offers a 3.5" color touch screen, intuitive interface, automated pass/fail analysis (to industry standards or user-defined), automatic image centering and OPM with calibrated wavelengths from 780 to 1625nm. Store test results on the device or export them to a PC via USB Generate certification reports with FiberChekPRO software.
This OLP-82 SmartClass Fiber Pro Kit (EDMO# FIT8201PRO) includes the main unit with 2 USB 2.0 and 1 micro-USB interface, P5000i microscope, inspection tips and adapters for LC/PC and SC/PC, 2.5 mm and 1.25 mm UPP OPM adapters, USB cable, FiberChekPRO software, cleaning materials for 2.5mm and 1.25mm (bulkhead and patch cord), visual fault locator, hands-free carrier, power supply, 8x AA batteries, rechargeable li-ion battery, manual, and carry case.
Features
- Field-portable OPM with multiple calibrated wavelengths from 780 to 1625 nm
- Automated pass/fail analysis fiber inspection and test
- Supports both industry-standard and user-definable acceptance criteria
- Integrated connector certification reports
- Onboard storage fiber inspection and test results
- Connects to a PC via mini-USB to export data and manage acceptance criteria using FiberChekPRO™ software
- Two USB ports to connect additional devices such as a P5000i microscope
- Automatic fiber-image centering
- Modern, smartphone-style user interface with touch screen
- Rugged, weather-proof design
Includes:
- SmartClass Fiber instrument
- Soft bag for SmartClass Fiber and accessories
- Power supply for SmartClass Fiber (12 V)
- FiberChekPRO software installation disk
- USB cable USB-A to micro-USB
- QuickStart manual and safety instructions
- Dry batteries (8x)
- P5000i Digital Inspection Microscope
- Inspection tips and adapters (bulkhead: SC and LC, patch cord: 2.5 and 1.25 mm)
- 1.25 mm OPM adapter OLP-82/82P
- Cleaning materials for 2.5 and 1.25 mm (bulkhead and patch cord)
- Hands-free carrier for SmartClass Fiber
- Rechargeable battery for SmartClass Fiber (Li ion)
- FFL-050 Visual Fault Locator with 2.5 and 1.25 mm adapter
Specifications
Weight:
1.6 lbs (750 g)
Dimensions:
8.2 x 4.4 x 2.5 in (208 x 112 x 64 mm)
Operating Temperature:
14 to 122°F (-10 to +55°C)
Storage Temperature:
-4 to 158°F (-20 to +70°C)
Display High:
Contrast 3.5” color LCD touch screen (4:3 ration)
Fiber Inspection:
Via external P-5000i or via patch cord microscope (P-variants)
Data Storage:
10,000 results
Data Download Capability:
Via USB interface
Remote Control Capability:
Via USB or Ethernet
Electrical Interfaces:
2x USB-A, 1x micro-USB, 1x Ethernet
Wireless Interfaces:
WiFi or Bluetooth
Dry Batteries:
8x Mignon (AA) Alkaline 1.5 V
Battery Pack:
1x Li-ion pack 3.7 V
AC Operation:
Via Universal Power Adapter
Operating Time:
12 hrs. (OLP) with the dry batteries
Photo Diode:
InGaAs
Spectral Range:
Broadband (780–1650 nm)
Wavelength Setting:
780–1650 nm, step size 1 nm
Resolution:
0.01 dB, 0.001 µW
Measurement Range for Power Level:
-65 to 10 dBm
Max. Power Level:
10 dBm
Measurement Uncertainty:
± 0.2 dB (intrinsic)
Linearity:
± 0.06 dB²
Calibrated Wavelengths:
850, 1310, 1490, 1550, 1625 nm
Tone Detection:
CW, 270 Hz, 1 kHz, 2 kHz
Optical Connectors:
1x UPP 2.5 mm
Recommended Calibration Interval:
3 years
EMI/ESD:
CE compliant
Product Codes
- Mfr Part No:FIT-8201-PRO
- EDMO #:FIT8201PRO
- Brand:VIAVI
- Category:Fiber Optic Inspection
