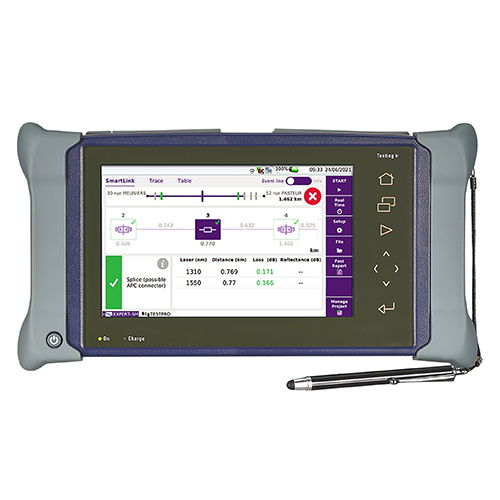

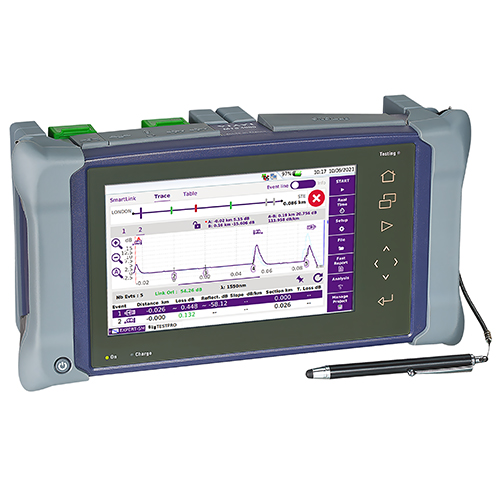

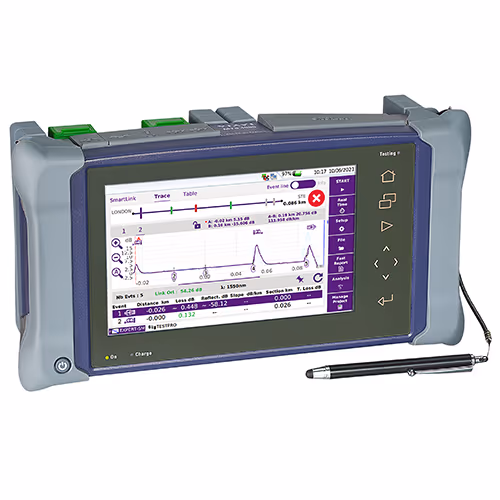

ETB4000HVT T-BERD/MTS-4000 V2 Platform
Product Description
The T-BERD/MTS-4000 V2 Platform is designed for the installation, turn-up, and maintenance of fiber optic networks. The optical test platform offers engineers, technicians, installers, and contractors an intuitive graphical user interface with a multi-touch LCD screens that requires minimal amount of training. The compact platform features user-replaceable modules which provide multiple optical test functions, such as optical power & loss testing and optical spectrum analysis for complete optical network qualification. Integrated StrataSync and SmartAccess Anywhere offers technicians an optimized workflow and operation throughout the platform.
Features
- Certifies fiber physical layer of FTTs/PON, access, metro and enterprise networks
- Two field-replaceable modules increases flexibility
- Tablet control allows for smart and faster field testing
- Advanced cloud support and remote connectivity
- Designed for fiber optic testing, qualifying, certifying, and reporting
- Dual modular handheld platform
- Large nine-inch, highly visible LCD touchscreen
- Integrated visual fault locator, optical power meter, optical microscope, and talkset
- Flexible connectivity options via ethernet, WIFI, and Bluetooth
- Smart Access Anywhere (SAA) offers remote control & tech support when out in the field
- StrataSync enabled allows centralized cloud based asset, configuration, test data, and workflow management
Specifications
Weight:
3 lb (1.4 kg), mainframe only with battery
5.1 lb (2.3 kg), mainframe with one module and battery
Dimensions:
11.1 x 6.02 x 3.8 in (282 x 153 x 97 mm), mainframe w/ two modules and battery
Display:
9 in, high visible, LCD touch screen (800x600)
Storage and I/O:
Internal memory: 1 GB
WIFI bluetooth: standard IEEE 802.11 b/g and bluetooth class 2
Ethernet: 10/100/1000 MHz
USB: 2xUSB 2.0 ports
Power Supply:
Battery type: standard removable Li-Ion
AC/DC adapter: Input: 100—250V @ 50—60Hz, Output: 12—15VDC (3.7 amp)
Electrical safety:
EN 60950 compliant
Operation time:
up to 16 hours Telcordia GR-196-CORE
Operating Temperature:
-4°F to 122°F (-20°C to 50°C), no options
32°F to 104°F (0°C to 40°C), all options
Storage Temperature:
-4°F to 140°F (-20°C to 60°F)
Humidity:
95%, non-condensing
EMC:
EN61326-1 / FCC 47-1 Part 15
Power Meter Power Level:
+10 dBm to -60 dBm
Power Meter Calibrated Wavelengths:
850, 1310, 1550 nm
Connector Type:
universal push/pull (UPP)
Visual Fault Locator:
635 nm ±15nm, wavelength
< 1mW, output power level
Class 2 laser
Talk Set:
32 dB, typical (dynamic range)
Product Codes
- Mfr Part No:ETB4000HVT
- EDMO #:ETB4000HVT
- Brand:VIAVI
- Category:Fiber Optic Inspection
