Dual Antenna Rack Mount Amplified GPS Splitter | 2 input & 16 Outputs, 48VDC power, high isolation
Product Description

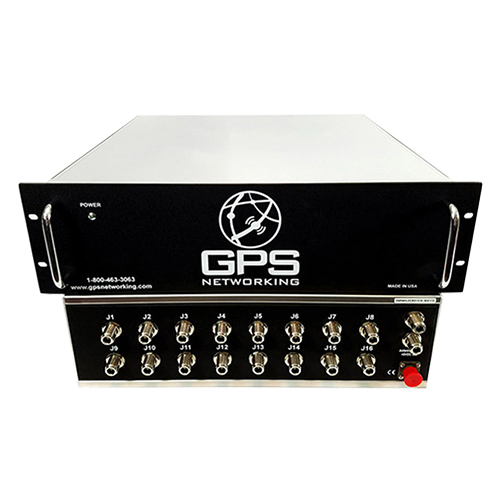

This rack mount amplified splitter features dual antenna inputs and 16 output ports that cover the L1 and L2 GPS frequency bands with excellent gain flatness. In the normal configuration, the splitter is powered by a receiver connector to J1 powering the splitter's amplifier and roof antenna. The output ports have a 200Ω load which simulates antenna draw to prevent antenna alarm faults. This dual antenna, 16-output unit is ideal where a GPS carrier signal is required by up to 16 GPS devices at once.
This dual antenna, rack mount splitter (EDMO# DRMALDCBS2) features two inputs and 16 outputs, 48 VDC power option, and high isolation option.
Features
- Dual antenna input
- Excellent gain flatness: <1.5 dB between L1 & L2
- 14 dB amplified gain
- 200Ω resistors on DC blocked output ports
- LED power light
- -48 VDC power option available
- Durable and rugged 3U chassis
- Extremely flat group delay
- High isolation option available
- Phase matched outputs: <1° between J1 & J2
Specifications
Weight:
12.2 lb
Dimensions:
5.4 x 18 x 17 in
Operating Temperature:
-40°C to 75°C
Frequency Range:
1.1 GHz — 1.7 GHz
In/Out Impedance:
50Ω
Gain:
13 dB — 15 dB (14 dB, typical)
Gain High Isolation:
-2.0 dB — 2.0 dB (0.0 dB, typical)
Input SWR:
2.0:1, max.
Output SWR:
1.5:1, max.
Noise Figure:
3.8 dB, typical (4.3 dB, max)
Gain Flatness:
0.5 dB, typical (1.0 dB, max.)
Amplitude Balance:
1.5 dB, max.
Phase Balance:
1.0°
Group Delay Flatness:
5 ns, max.
Current Draw:
15 mA, max.
Product Codes
- Mfr Part No:DRMALDCBS2X16
- EDMO #:DRMALDCBS2
- Brand:GPS NETWORKING
- Category:GPS Components & Accessories
