Wiring System Maintenance Kit | For Agusta Westland A109, AW109, A119, AW119, & A129
Product Description
The DMC902 Wiring System Service Kit provides a well organized single location tool kit to strip, crimp, install and remove typical contacts and terminals for Agusta Westland A109, AW109, A119, AW119, & A129 helicopters. The DMC902 kit contains the tooling-to-connector, contact and terminal cross reference information which indicate the particular tool(s)that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the required tooling.
Features

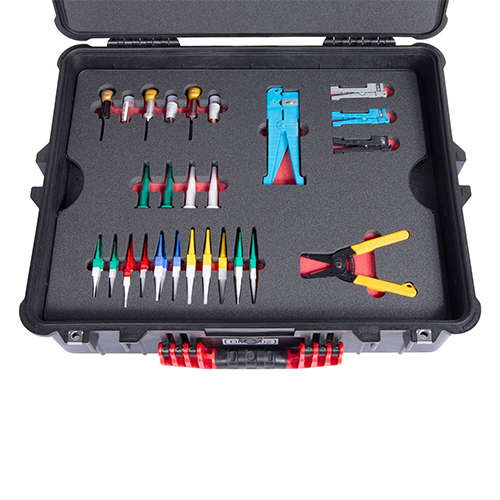

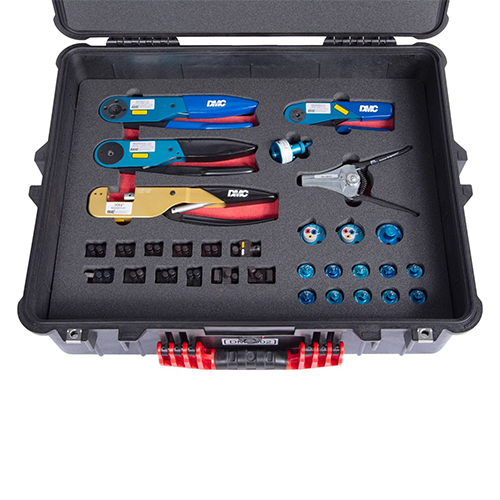

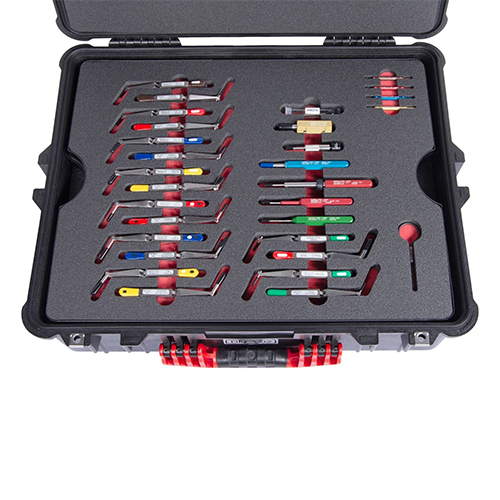

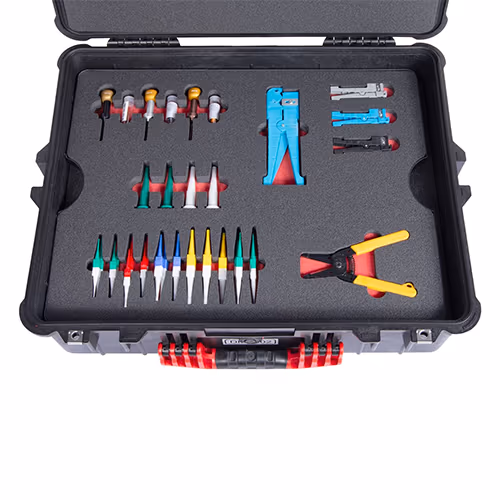

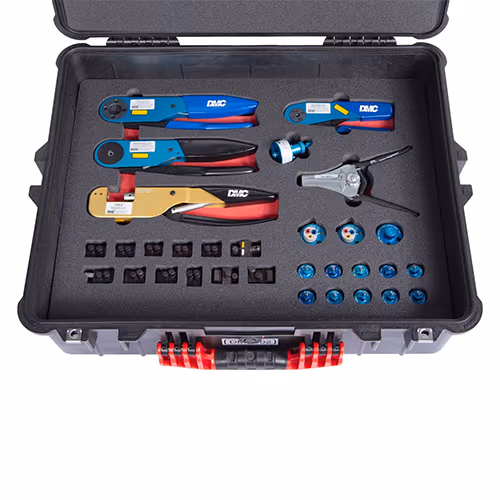

Kit Includes:
- 4 Crimp Tools
- 2 Turret Heads
- 10 Positioners
- 1 Single Position Head
- 1 Universal Head
- 12 Die Sets
- 12 Metal Insertion Tools
- 14 Metal Removal Tools
- 67 Plastic Insertion/Removal Tools
- 4 Contact Gages
- 3 Unwired Contact Removal Tools w/ Probes
- 1 Wire Cutter
- 1 Wire Stripper
- 2 In-Service Inspection Gages
- 1 Die Removal Tool
- 1 Hex Wrench
- 4 Coaxial Cable Strippers
Features:
- All-in-one connector repair kit

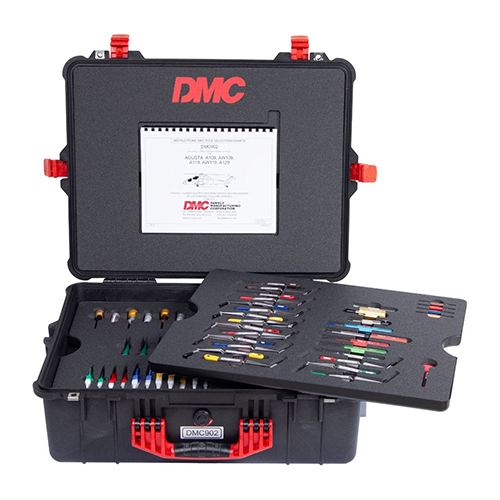

- Black polypropylene copolymer case with name plate, foam inserts, contents, instructions, and tool-to-connector cross reference charts
- For use with Agusta Westland A109, AW109, A119, AW119, & A129 wiring systems
Specifications
No product specifications currently available.
Product Codes
- Mfr Part No:DMC902
- EDMO #:DMC902
- Brand:DANIELS MFG
- Category:Tools & Cases
