DMC567MOD1 Wiring System Maintenance Kit | For Boeing 757 & 767

DMC567MOD1 1

DANIELS MFG

CALL FOR PRICING
Available To Order
EDMO#DMC567MOD1

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

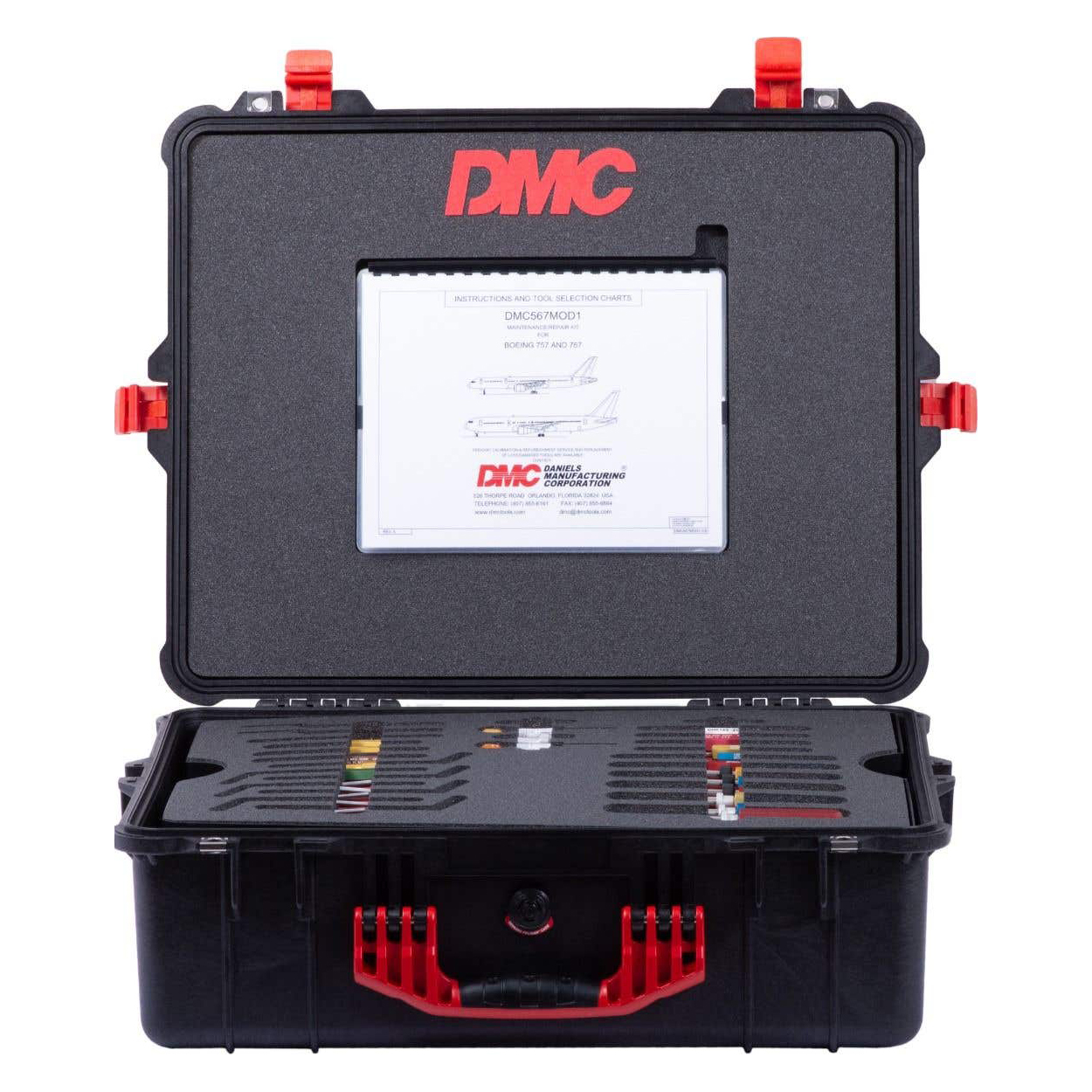

The DMC567MOD1 Wiring System Service Kit provides a well-organized single location tool kit to strip, crimp, install and remove typical contacts and terminals for Boeing 757 & 767 aircraft. The DMC567MOD1 kit contains the tooling-to-connector, contact and terminal cross reference information which indicate the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the required tooling.

Features

  • All-in-one connector repair kit

  • Black polypropylene copolymer case with name plate, foam inserts, contents, instructions, and tool-to-connector cross reference charts

  • For use with Boeing 757 & 767 wiring systems

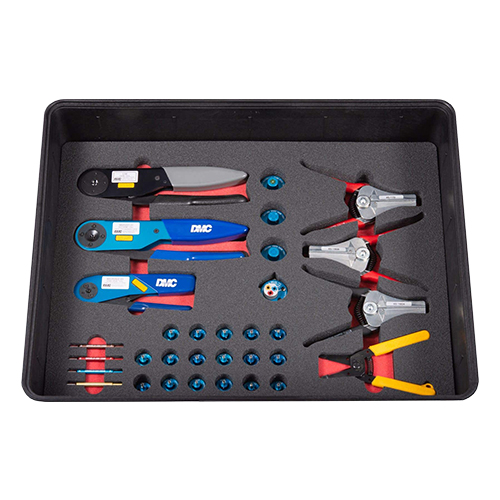

Kit Includes:

  • 6 Crimp Tools (2063857-1 Not Supplied)

  • 1 Turret Head

  • 17 Positioners

  • 3 Single Position Heads

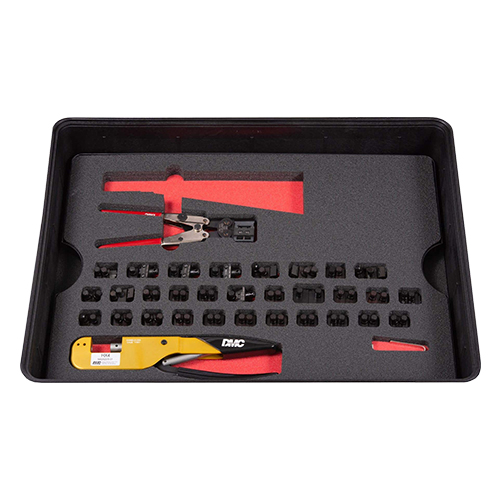

  • 30 Die Sets

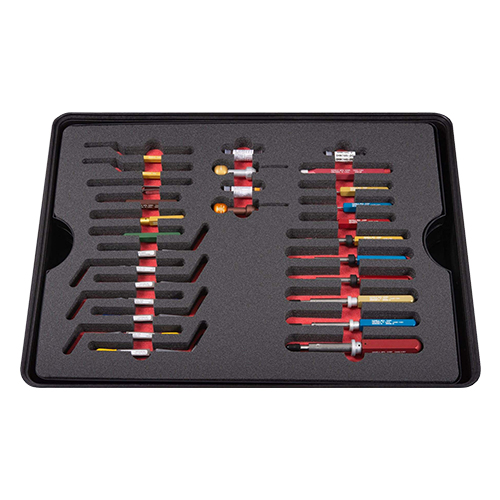

  • 13 Metal Insertion Tools

  • 12 Metal Removal Tools

  • 4 Metal Insertion/Removal Tools w/ Tips

  • 55 Plastic Insertion/Removal Tools

  • 4 Contact Gages

  • 2 Unwired Contact Removal Tools w/ Probes

  • 1 Wire Cutter

  • 3 Wire Strippers

  • 3 In-Service Inspection Gages

  • 2 Module Removal Tool

  • 1 Socket Module Removal Tool

  • 1 Relay Extraction Tool

  • 1 Hex Wrench

  • 1 Die Removal Tool

  • 1 Wire Harness Spoon

Connector Coverage:

  • TE Series PIDG

  • Amphenol Series 17, 48, 220

  • Appleton Relays

  • Bunrdy Series Smooth Bantam

  • Cannon Series Arinc 404, DPXME, Arinc 600, BKAD/E, D*C/D*U, D*MA, FRF/FVA,KPSE

  • Deutsch Series DD, Jiffy Junction

  • Etc Insulated Terminals

  • FabriTek BACC65K/L Rectangular

  • Hollingsworth Insulated Terminals/Splices

  • In-Con Series PE

  • Kings Electronics Series KA, TNC, KD, C, KN, N

  • Leach Relays Relays

  • Matrix Series MR*B*E

  • Pyle National Series A

  • Souriau Series S600

  • Thomas & Betts Series GSC

  • TRW Cinch Series C-48, MMB

  • Viking Relays

  • Walter Kidde Fire Detection Connectors

  • MIL-DTL-24308 Miniature Rack and Panel

  • MIL-DTL-26500 Firewall Connectors

  • MIL-DTL-26482 Series I

  • SAE-AS50151 Series MS3400

  • SAE-AS7928 Insulated/Uninsulated Terminals and Splices

  • SEA-AS81714 Terminal Junctions
