DMC491 Wiring System Maintenance Kit | Bell 212/412 Helicopter

DMC491

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#DMC491
MFR#DMC491

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

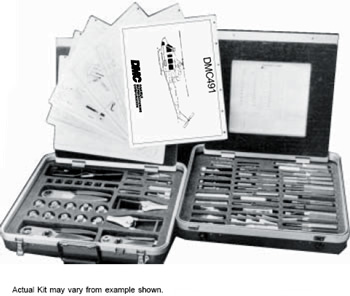

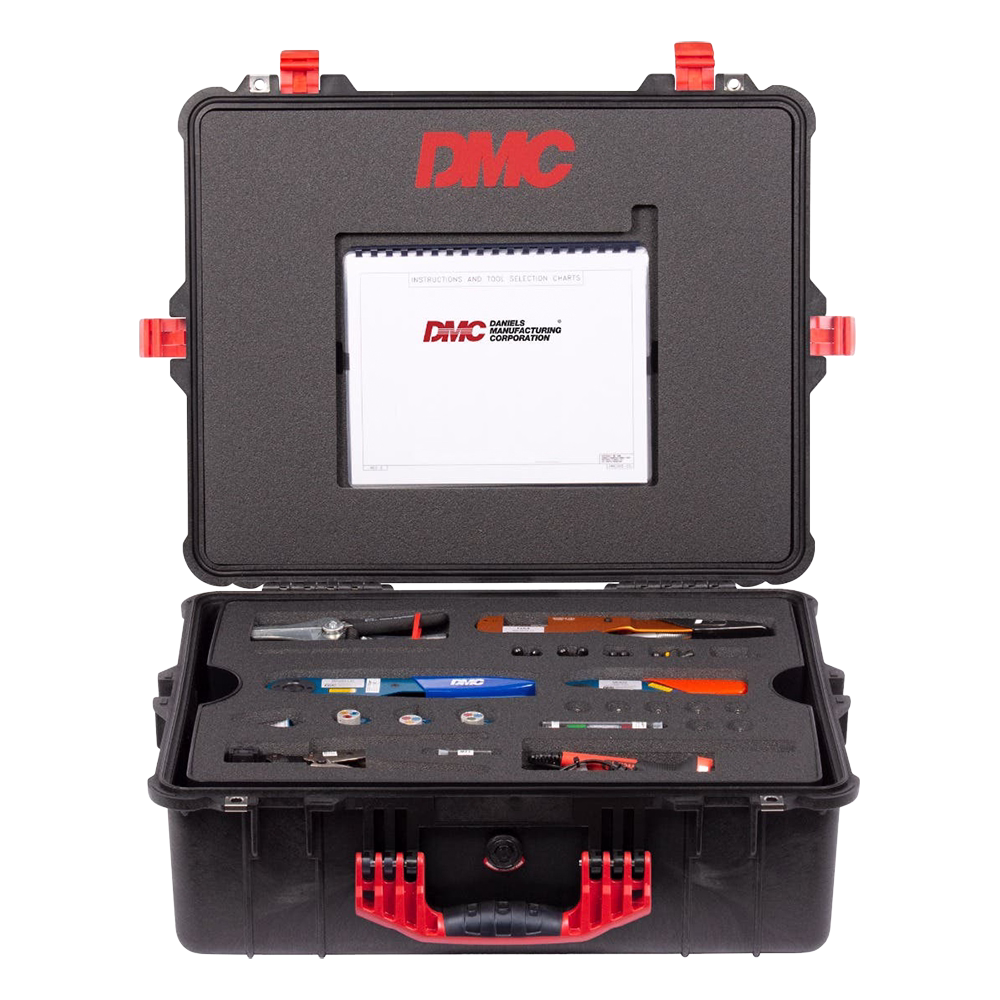

The DMC491 Bell 212/412 Helicopter Wiring System Service Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC787 kit includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.

Features

Kit Includes:

  • 3 Crimp Tools

  • 1 In-Service Inspection Gage

  • 4 Turret Heads

  • 6 Positioners

  • 5 Die Sets

  • 10 Metal Insertion Tools

  • 10 Metal Removal Tools

  • 26 Plastic Insertion/Removal Tools

  • 4 Contact Gages

  • 2 Unwired Contact Removal Tools w/ Probes

  • 1 Wire Cutter

  • 4 Wire Strippers

  • 1 Die Removal Tool

  • 1 Hex Wrench

DMC Connector Coverage:

  • Amphenol/Bendix RF Coaxial

  • Bell Helicopter Standards RF Coaxial

  • Deutsch DS Series

  • ITT Cannon DPX*MA Series

  • Kings Electronics RF Coaxial

  • Leach Relays JL Series

  • Ted Manufacturing RF Coaxial

  • Walter Kidde Fire Detection Connectors

  • Winchester Electronics MRE Series

  • SAE-AS50151 3450 Series

  • MIL-DTL-24308 Rectangular

  • MIL-DTL-26482 Series 2

  • MIL-DTL-38999 Series 2

  • MIL-DTL-83723 Series 3

  • MIL-PRF-39012 RF Coaxial

Specifications

Weight:
38 lb

Case Material:
Black Polypropylene Copolymer

Product Codes

  • Mfr Part No:DMC491
  • EDMO #:DMC491
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • ECCN:EAR99
  • ECCN:EAR99
  • SCHEDULE B CODE:8203.20.6060
  • SCHEDULE B CODE:8203.20.6060
