DMC1808 Wiring System Maintenance Kit | Airbus H145/Eurocopter EC145
Product Description

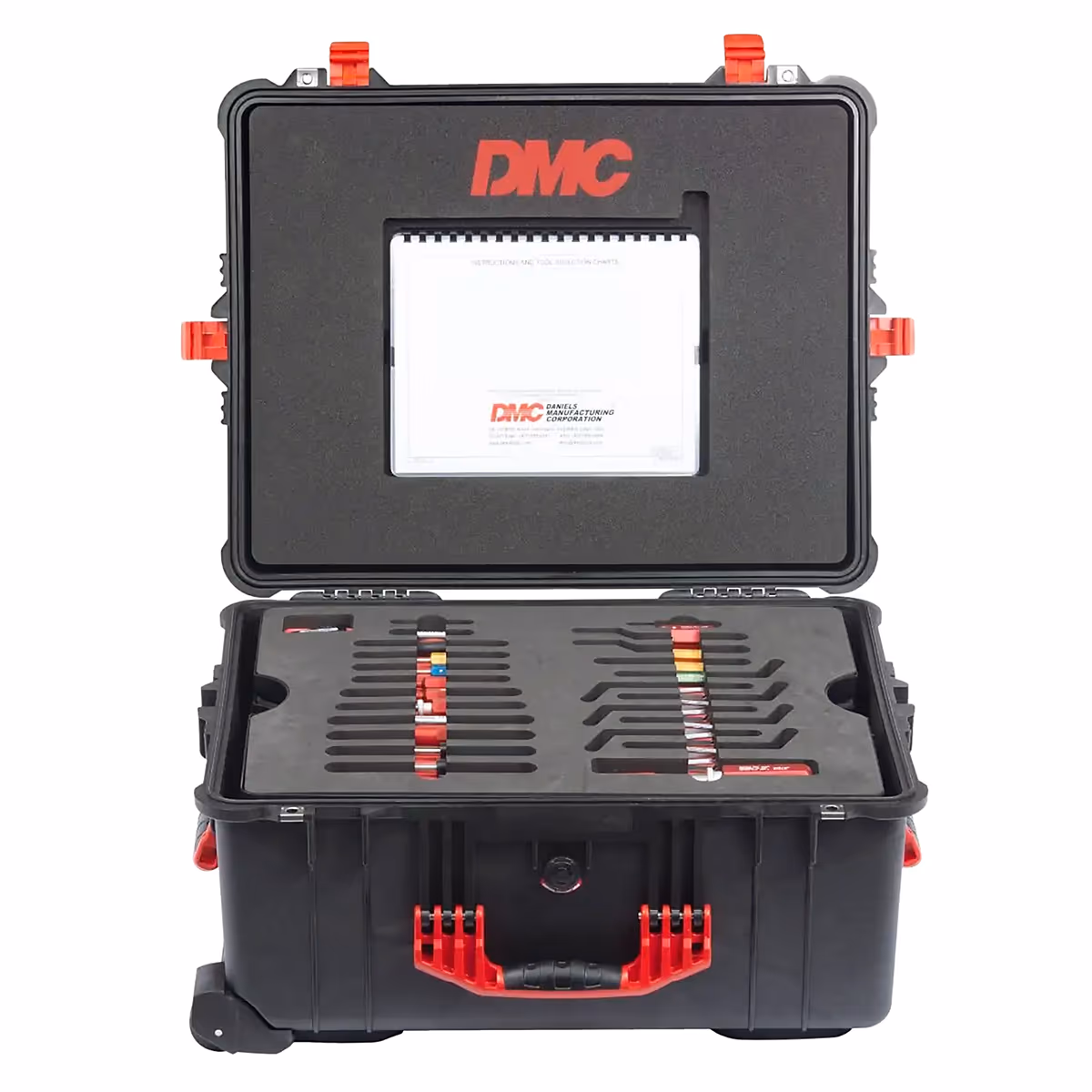

The DMC1808 Airbus H145/Eurocopter EC145 Wiring System Service Kit
provides a turn-key solution and the tools necessary to strip, crimp,
install, and remove the typical contacts and terminals of this wiring
system. The DMC1808 kit includes the tool to application cross-reference
information that indicates the particular tool(s) that should be
selected to repair a specific connector, contact, or terminal. In
addition, the kit also contains illustrated operating instructions for
the designated tooling.
Features
Kit Contents:
- 6 Crimp Tools
- 8 Positioners
- 4 Turret Heads
- 1 Single Position Head
- 1 Universal Head
- 1 Universal Positioner
- 12 Die Sets
- 2 In-Service Inspection Gages
- 12 Metal Insertion Tools
- 11 Metal Removal Tools
- 63 Plastic Insertion/Removal Tools
- 4 Contact Gages
- 2 Unwired Contact Removal Tools w/ Probes
- 1 Wire Cutter
- 3 Wire Strippers
- 1 Hex Wrench
- 2 Coaxial Cable Strippers
- 1 Die Removal Tool
- 1 Wire Harness Spoon
DMC Connector Coverage:
- MIL-DTL-26482 Series 1 and 2
- MIL-DTL-38999 Series 3
- AS50151 3100, 3450 Series
- MIL-DTL-83723 Series 3
- M81824 Environmental Splices
- MS20659 Non-Insulated Terminals
- MS25036 Insulated Terminals
- MIL-STD-1553 DATABUS
- Amphenol - Socapex SJT Series
- Amphenol - Air LB Terminal Junctions
- Deutsch DMC-M Series
- ITT Cannon CA Series
- Leach Relay Sockets
- Souriau 851 Series, 8630 series
- Tyco–Amp PIDG, Solistrand, Stratotherm Series
- Tyco–Raychem D-436 Series
Specifications
No product specifications currently available.
Product Codes
- Mfr Part No:DMC1808
- EDMO #:DMC1808
- Brand:DANIELS MFG
- Category:Tools & Cases
