Wiring System Maintenance Tool Kit | Lockheed C-130H Hercules
Product Description

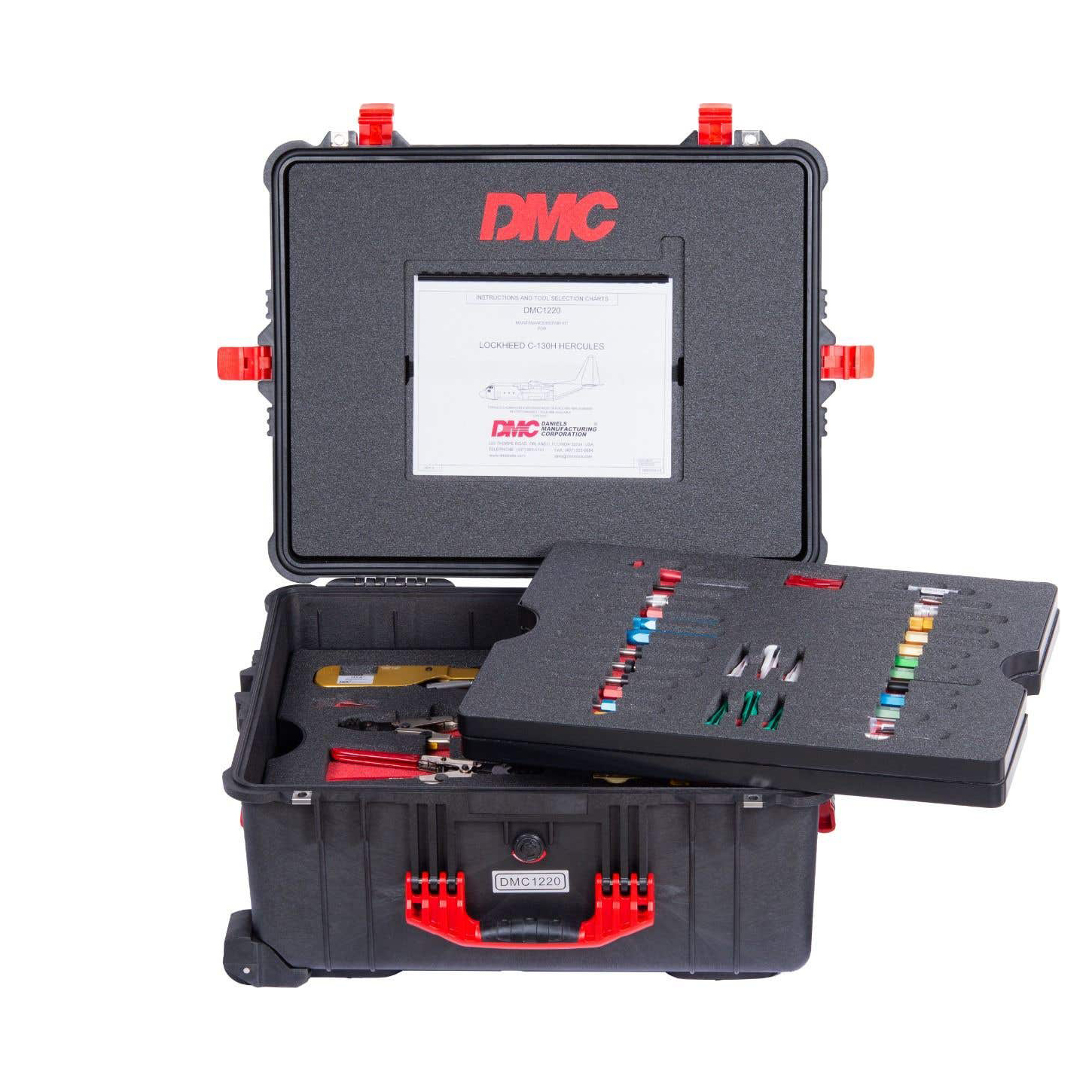

This tool kit contains all of the necessary tools for repairing electrical connectors and wiring systems for the Lockheed C-130H Hercules aircraft. The DMC1220 kit contains the tooling to connector, contact and terminal cross reference information to indicate the particular tool for a specific connector, contact, or terminal. This kit also contains an illustrated operating instructions for the required tooling.
Features

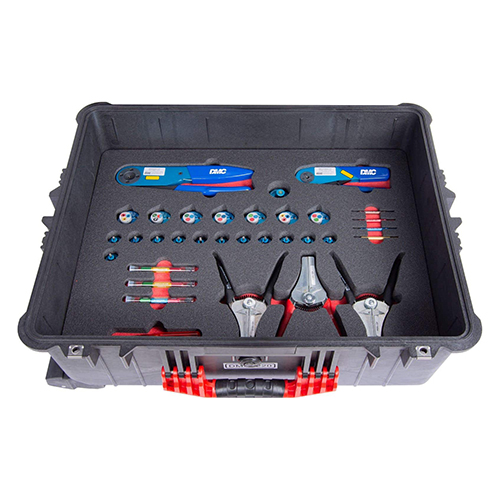

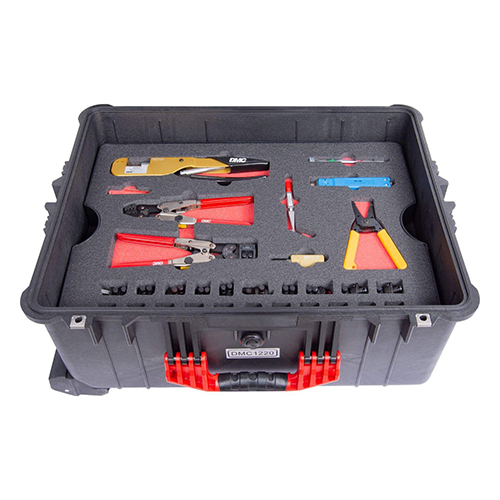

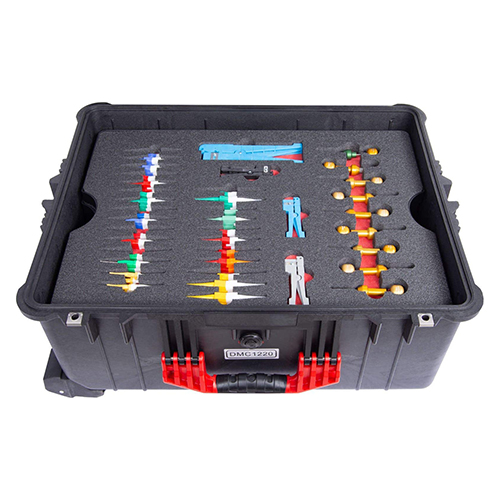

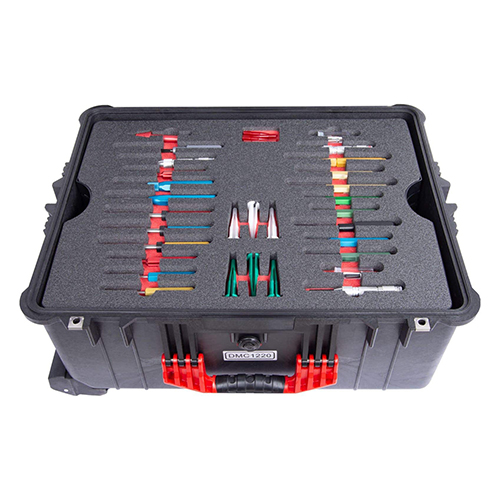

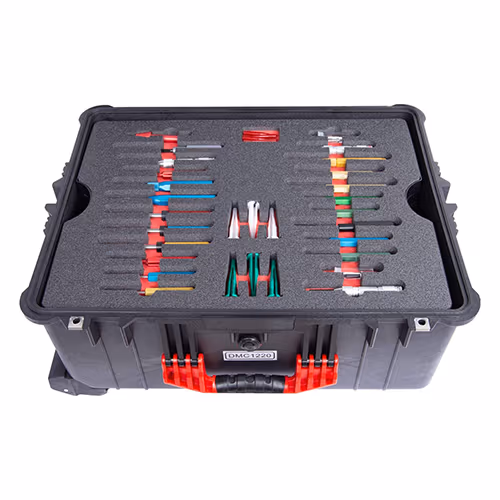

Kit Includes:
- 5 Crimp Tools
- 4 In-Service Inspection Gages
- 7 Turret Heads
- 12 Positioners
- 1 Single Position Head
- 11 Metal Insertion Tools
- 15 Metal Removal Tools
- 7 Unwired Removal Tools
- 65 Plastic Insertion/Removal Tools
- 4 Contact Gages
- 2 Metal Removal Tools with Probes
- 1 Wire Cutter
- 4 Wire Strippers
- 1 Die Removal Tool
- 21 Die Sets
- 1 Hex Wrench
- 4 Coaxial Cable Strippers
Connector Coverage:
- AMP: PIDG, Solistrand Insulated/ Uninsulated Terminals/ Splices, RF-Coaxial
- Amphenol: 165, RF-Coaxial, 162GB Series
- ARINC600: Rack & Panel
- Bendix: 48, BT-MA, JT, TV, PT-SE, PT, PC
- Burndy: Smooth Bantam, Hyfen
- Collins: Thin-Line, Pro-Line
- Deutsch: DS, DM, RTK
- Delta: RF-Coaxial
- Fenwal/Edison: Overheat Detection Connectors
- Interconnectron: FC, FH, FZ
- ITT Cannon: BKAD, CA, DPA, DPD, DPE, DPJM, DPXB, DPX*MA, KM, KO
- Kings Electronics: RF-Coaxial
- Lockheed: Various LN Specifications ONO “AIMS” ONO89560 Relay Sockets Various Specifications
- Trompeter: RF-Coaxial
- Winchester: MRAC, MRE
- MIL-DTL-24308: Rectangular Rack & Panel
- MIL-DTL-26482: Series 1 & 2
- MIL-DTL-26500: Firewall Connectors
- MIL-DTL-38999: Series 1, 2 & 3
- AS50151: RF-Coaxial
- AS81511: Series 2 & 4
- MIL-DTL-83723: Series 3
Specifications
No product specifications currently available.
Product Codes
- EDMO #:DMC-1220
- Brand:DANIELS MFG
- Category:Tools & Cases
