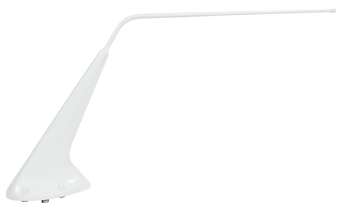

DM C70-4 VHF Broadband Antenna | 360/720 Channel, Bent Rod, 8.9in tall

Product Description

The C70 Series VHF Communication Antennas are designed to be installed on the top or bottom on high-performance, single, twin and turbo engine fixed and rotary wing aircraft. These uniquely designed antennas offer mechanical strength and high electrical efficiency to provide maximum reliability and full 360/720 channel transceiver operation. Its lightweight profile is unobtrusive, resists icing, and has low drag.


This C70 series VHF communication antenna (EDMO# DM C70-4) has a has 4-hole mounting pattern, centered BNC connector, and a 2.58 x 4.26 inch footprint.

The DM C70-4 is specifically designed for bottom installations, where ground clearance does not permit the use of other C70 series antennas. The C70-4 provides a higher degree of efficiency to assure maximum performance.

Specifications

• Weight:
  12 oz (0.34 kg)
• Dimensions:
  8.9 in, height 4.26 in, base
• Connector:
  BNC female
• Finish:
  white polyurethane
• Frequency Range:
  118 MHz – 137 MHz
• VSWR:
  2.0:1 (DM C70-1/A)
• Polarization:
  vertical
• Power:
  50 watts
• Impedance:
  50Ω
• Radiation Pattern:
  omni directional
• Connectors:
  BNC female
• Speed Rating:
  250 MPH (DM C70-1/A)
• Approvals:
  TSO C37d, TSO C38d

Product Codes

• Mfr Part No
  C70-4
• ECCN
  7A994
• PROAPP
  PT1084NE
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d
