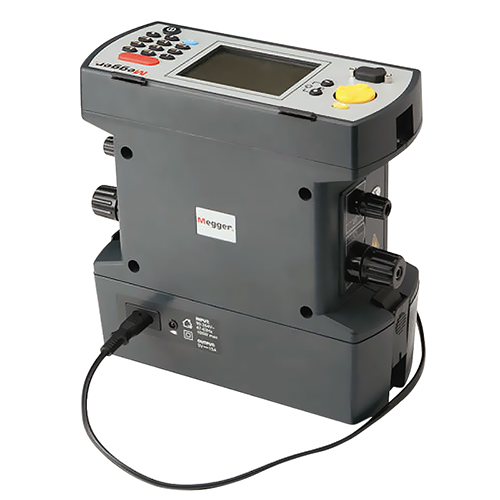

DLRO-10X Digital Multimeter
Product Description
The DLRO-10X digital multimeter features automatic and manual low resistance measurements down to 0.1µΩ and up to 2,000Ω. This provides users with more control over each measurement. The DLRO-10X includes the ability to download results in realtime or store them in onboard memory. This unit has a large, back-lit LCD display measuring 4-1/2 inches which can display an average value with in three seconds. High and low pass limits can be set to enable simple go-no-go testing.
Features
- Interchangeable test lead terminations
- Auto current reversal cancels standing EMFS
- Protected to 600 volt
- Automatically detects continuity in potential and current connections
- Multiple operating modes plus fully automatic mode
- Alpha-numeric keypad for entering test limits (DLRO 10X)
- Printer output and memory (DLRO 10X)
Specifications
Weight:
2.6 kg
Dimensions:
220 x 100 x 237 mm
Measurement Mode:
Manual, Auto, Continuous, Inductive, Unidirectional (DLRO 10X)
Measurement Control:
Fully automatic/manual
Measurement Speed:
<3 sec. for forward and reverse current and to display average
Display:
4-1/2 in, 7 segment LED
backlight LCD (DLRO-10X)
Test Method:
single cycle reversing D.C. ratiometric measuring -average result display
Test Current Accuracy:
±10%
Test Current Stability:
<10 ppm per second
Lead Resistance:
100 mΩ total for 10A operation, max.
Voltmeter Input Impedance
>200Ω
Data Transfer:
real time or from storage via RS232 (DLRO-10X)
Data Storage:
700 tests
Memo Field:
up to 200 characters per test (LDRO-10X)
Battery Type:
7Ah NiMH rechargeable
Battery Life:
1,000 10-amp tests
Battery Charge Time:
(using External Charger 90V – 260V 50/60Hz from 12 – 15V DC supply)
Standard Charge: 2.5 hr to 90%, 4 hr to full
Temperature Range:
41°F to 131°F (5°C to 45°C), operating
50°F to 113°F (-30°C to 70°C)
Altitude:
6562 ft (2,000 m)
EMC:
IP65 (closed case)I
P54 (battery operation)
Safety:
in accordance IEC61010-1, CATIII 600V (when DH6 leads are used)
Product Codes
- Mfr Part No:DLRO-10X
- EDMO #:DLRO-10X
- Brand:MEGGER
- Category:Wire & Cable Testers
