D-436 MiniSeal In-Line Butt Splice | 26 - 20 AWG Wire Size, Red

RAYCHEM

Call For Pricing

In stock

EDMO # D-436-0110

MFR Part # 650038-000

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

MiniSeal wire-to-wire splicing products offer solutions for hundreds of aerospace and defense applications. These environment-resistant splices provide excellent reliability, long term performance, MIL-S-81824/1 qualification, and a low installed cost. They preserve the electrical integrity of the splice by preventing the penetration of liquids and the resulting chemical and galvanic corrosion.

Features

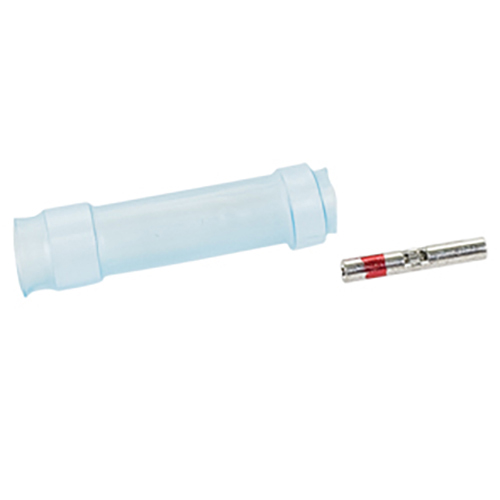

This in-line splice (EDMO# D-436-0110):
Fits 26 - 20 AWG wire sizes
Blue-translucent nylon insulation material
Red color code
Tin-plated, copper conductor

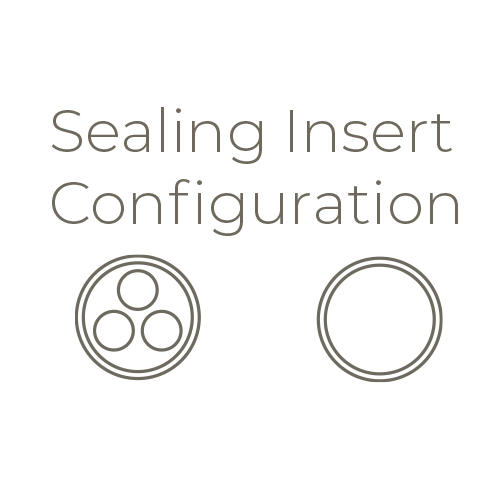

Side one has 3-hole sealing insert, side two has single-hole sealing insert
Features:
Immersion-resistant
MIL-Spec approval
Small size
Light weight
Insulation and strain relief
Easy installation

Also Purchased

Specifications

Splice Type:

In-line butt splice
AWG Size:

26 AWG – 20 AWG
Color Code:

Red
Barrel Type:

Closed
Insulated:

Yes
Plating Material:

Tin-plated copper
Operating Temperature:

-55°C to 150°C (-67°F to 302°F)

Product Codes

Mfr Part No

650038-000
MIL SPEC

MIL-S-81824/1
ECCN

EAR99
MIL SPEC

MIL-S-81824/1
SCHEDULE B CODE

8536.90.4000
