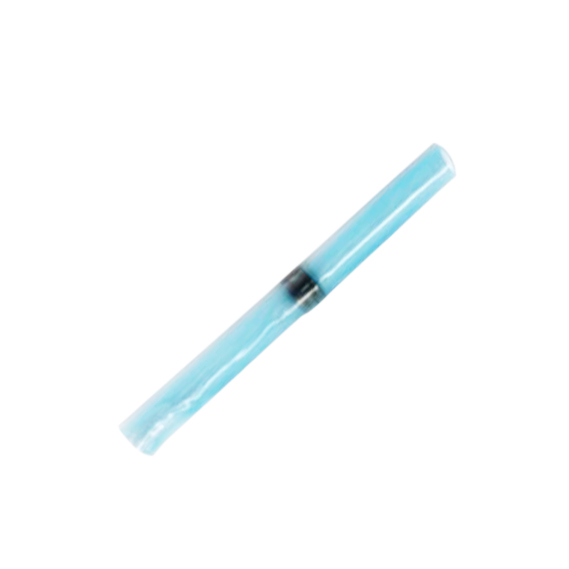

D-110 Solder Sleeve Wire Splice | 0.070 – 1.91in
Product Description
D-110 solder sleeve splices provide encapsulation, strain relief, insulation, and simple inspections for splicing together one or two wires per end. The one-piece design makes installation simple and cost effective.
This D-110 solder splice (EDMO# D-110-35) will fit silver- or tin-plated wiring with a combined diameter between 0.020 in and 0.070 inches.
Features
- Simple and cost-effective installation
- 150°C operating temperature
- Splash-proof
- Convection or infrared installation procedure
Specifications
Weight:
13 mg, minimum
Temperature:
150°C (operating)
Insulation Material:
Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride
Insulation Color:
transparent blue
Maximum Recovered I.D.
0.030 in (0.76 mm)
Solder Preform (with Flux):
Type Sn63 per ANSI J-STD-006
Flux Type:
Type ROL1 per ANSI-J-STD-004
Product Codes
- Mfr Part No:D-110-35
- EDMO #:D-110-35
- Brand:RAYCHEM
- Category:Electrical Interconnect
