Solder Sleeve Shield Terminal | 0.018 – 0.200in
Product Description

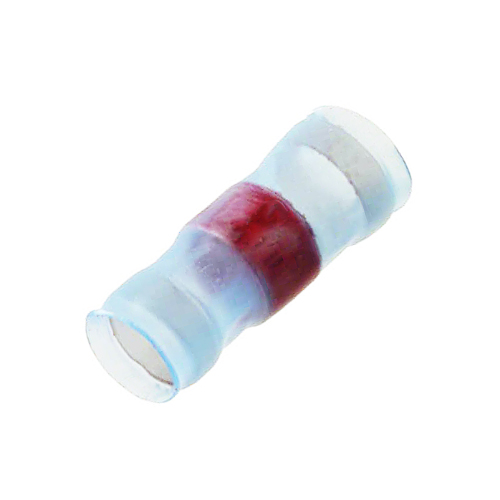

Solder sleeve shield terminals provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.
This shield terminal (EDMO# D-101-00) fits cables with a 0.018 – 0.200 inch jacket diameter.
Features
- Meets NAS-1747 standards
- 125°C minimum temperature rating
- Convection or infrared installation procedure
Specifications
Cable Size:
0.018 – 0.200 in (4.55 – 5.00 mm)
Insulation Material:
Radiation cross-linked polyvinylidene fluoride
Solder Preform (with Flux):
Sn63 Pb37 solder alloy
Thermal Indicator:
Violet
Meltable Ring:
Thermally stabilized thermoplastic
Temperature Range:
-55°C to 150°C
Product Codes
- Mfr Part No:D-101-00
- EDMO #:D-101-00
- Brand:RAYCHEM
- Category:Wire, Cable & Accessories
