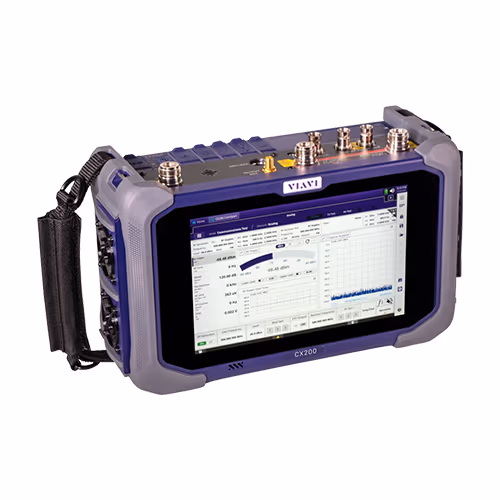

CX200 SiteXpert Communications Service Monitor | 1 GHz
Product Description
The CX200 SiteXpert is an advanced communications service monitor for modern technicians, offering a user-friendly interface and a comprehensive feature set to meet a wide range of infrastructure and subscriber maintenance needs. The CX200 incorporates the most popular features from our industry-leading test sets into a field portable package without sacrificing specs or performance. The global land mobile radio (LMR) market is rapidly transitioning from analog to digital. The CX200 is designed with advanced frequency, power, and modulation analysis instruments for both analog and digital systems.
Continuing the innovative user interface established with the CX300, the revolutionary QuickSwitch™ feature streamlines testing by enabling rapid switching between Duplex, Transmit, and Receiver Tests without disrupting current measurement setups. QuickSwitch also allows switching between analog, P25, DMR, AutoTest, Spectrum Analyzer, and Cable and Antenna Analysis.
Features
Standard:
- Tracking Generator
- Cable and Antenna Analyzer (1-Port)
- WiFi
- VNC
- Spectrum Analyzer
- Smart Access Anywhere
- StrataSync
- Remote Command Interface
- Bluetooth
Optional:
- 3 GHz frequency range
- P25
- TETRA
- DMR
- DMR Repeater
- NXDN
- P25 Phase 2
- Auto-Test Applications
- Bird Power Meter
Specifications
Weight:
8.6 lbs
Dimensions:
11.2 x 6.8 x 4.2 in (284.3 x 173.5 x 106.8 mm)
Display:
8 in (203.2 mm)
Operating Temperature:
0°C to 50°C
Non-Operating Temperature:
-40°C to 71°C (battery removed)
Relative Humidity:
95% non-condensing
Altitude:
4600 m
Warm-up Time:
30 min
Battery Type:
14.4 V, 6.8 Ah Lithium Ion
Runtime:
3 hours
Test Range:
-140 dBm to +17 dBm
Frequency Range:
100 kHz to 3 GHz
Product Codes
- Mfr Part No:22179279
- EDMO #:CX200
- Brand:VIAVI
- Category:Land Mobile Radio Test Sets
- SCHEDULE B CODE:9030.40.0000
