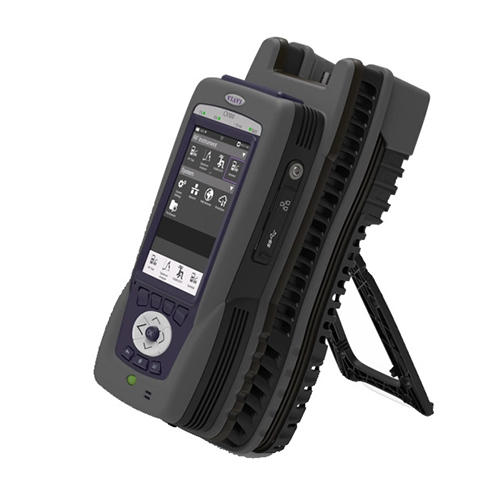

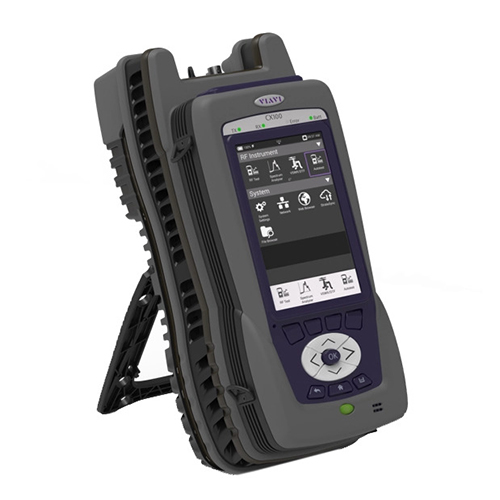

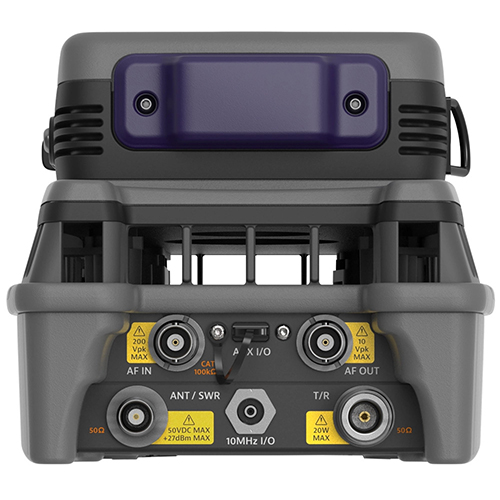

CX100 Handheld Communication Service Monitor
Product Description
The CX100 ComXpert is an easy to use, complete communications test solution ideal for testing handheld and vehicle-mounted radios. The CX100 offers industry-leading specifications and performance in a MIL-PRF-28800F Class 2 portable package. In a first of its kind form factor, the CX100 provides users with a full-color, easy to use interface, with exceptional operating performance. With advanced features like a 6 GHz frequency range, 1 port VNA for cable and antenna analysis, and remote operation with the VIAVI Mobile Tech app, the CX100 brings field maintenance support to the next level.
Features
- 6 GHz Frequency Range
- Spectrum Analyzer
- VNC
- One-port Vector Network Analyzer
- Mobile Tech App (Requires Wireless Personal Area Network (WPAN/BT) Connectivity Option)
Specifications
Weight:
11 lbs (5 kg)
Dimensions:
12 x 9.5 x 4.3 in (30.5 x 24.1 x 10.9 cm)
Display Size:
5 inches (12.7 cm), diagonal
Battery:
Internal, 3+ Hours Operation
Rugged:
30 G Shock
Test Range:
-120 dBm to 0 dBm
Frequency Range:
1 MHz to 6 GHz
Temperature:
-10°C to +40°C (operating)
-20°C to +60°C (non-operating)
Relative Humidity:
95% (non-condensing)
Altitude:
4,600 m
Battery Type:
14.4V, 6.8 Ah Lithium-ion
Battery Operation:
3+ Hours
Battery Charging Limits:
0°C to 45°C (32°F to 113°F) <85% Relative Humidity
Vibration:
MIL-PRF-28800F Class 2
Shock:
MIL-PRF-28800F Class 2
Bench Handling:
MIL-PRF-28800F Class 2
Transit Drop:
MIL-PRF=2800F Class 2
Product Codes
- Mfr Part No:CX100
- EDMO #:CX100
- Brand:VIAVI
