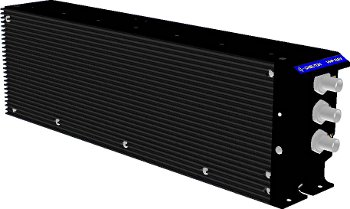

CVN-251 VHF NAV Receiver | Radial Output, 75 MHz/106–118 MHz, 10 mW
Product Description
The FliteLine VHF Navigation Receiver is an all digital DSP Navigation System which combines VOR/LOC, Glideslope and Marker Beacon functions. This Receiver configuration supports the total navigation interface requirements for MFD or moving map displays. The ARINC 429 digital data bus offers compatibility with EFIS/LCD displays, the Wulfsberg RMS-555 Radio Management and Flight Management Systems by supporting Nav auto-tune operation. Additional interfaces are provided to HSI's, CDI's and RMI's to include analog. Automatic calibration of the VOR converter ensures navigation guidance accuracy. FliteLine Navigation System represents 50% weight and volume reduction as compared to Series III. FliteLine Navigation System is interchangeable with Series III equipment using a special mounting tray adapter.
This FliteLine VHF Navigation Receiver (EDMO# CVN-251-1) features digital radial output.
Features
50% weight and space savings over Series III radio
Drop-in replacement for Series III radios (adaptor bracket required)
Analog outputs to CDI’s and HSI’s
Digital radial/bearing output
ARINC 429 Digital Data Bus
FM immunity
Increased self-test and BIT
Multiple lighting curve options
Special rotor modulation protection
Specifications
Weight:
3.75 lbs (1.70 kg)
Dimensions:
12.95 x 2.4 x 4.0 in (328.9 x 61.0 x 101.6 mm)
Altitude:
55,000 ft (16,764 m)
Temperature:
-67 °F to 185 °F (-55 °C to 70°C)
Power Requirements:
27.5 VDC; 18–33 VDC
Current Requirements:
0.8 A
Transmit Power:
20 W
Frequency Range:
75 MHz; 106–118 MHz
Audio Output:
10–40 mW
Product Codes
- Mfr Part No:400-048500-0001
- EDMO #:CVN-251-1
- Brand:CANYON AEROCONNECT
- Category:NAV/COM Aircraft Radios
- ETSO:2C34f, 2C36f, 2C40c, 2C35d
- TSO:C34e, C36e, C40c, C35d
