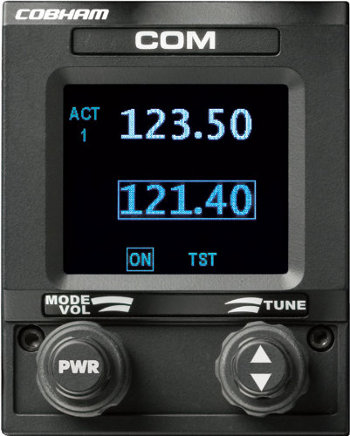

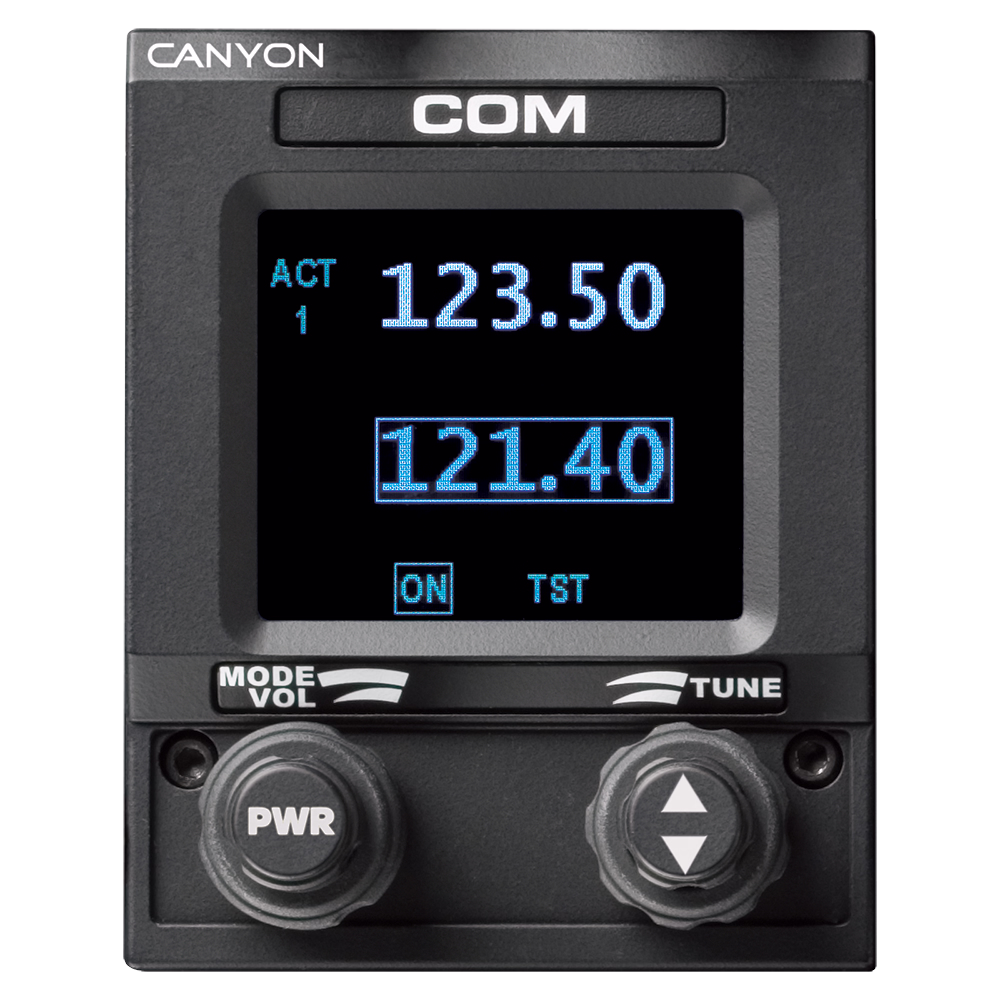

CVC-152 VHF COM Display | Volume Control, 28 V, Black Bezel
Product Description
FliteLine panel-mount controls install quickly and easily with minimal wiring changes when replacing many older radio controllers. Featuring LCD displays, they are NVG compatible. The CVC-152 VHF COM Display features 8.33 and 25 kHz selectable tuning that covers the 118.000-136.975 standard and 118.000- 151.975 extended frequency ranges.
This CVC-152 VHF COM Display (EDMO# CVC-152-1) is a 28 V unit with volume control and a black bezel.
Features
8.33–25 kHz tuning, selectable
118.000–136.975 MHz standard frequency range
118.000–151.975 MHz extended frequency
LCD color display
FliteLine control display
Series III replacement display, no wiring changes
Supports Collins Gables 2 x 5 tuning interface
FAA TSO-C113
EASA ETSO-C113
Specifications
Weight:
0.77 lb (0.35 kg)
Dimensions:
4.29 x 2.50 x 3.15 in (108.97 x 63.5 x 80.01 mm)
Altitude:
55,000 ft (16,764 m)
Temperature:
-4 ºF to 158 ºF (-20 ºF to 55 ºF)
Power Consumption:
280 mA (Max)
Lighting Power Requirements:
5.0 VAC, 5.0 VDC & 28 VCD
Product Codes
- Mfr Part No:400-047152-0000
- EDMO #:CVC-152-1
- Brand:CANYON AEROCONNECT
- Category:NAV/COM Aircraft Radios
- ETSO:C113
- TSO:C113
