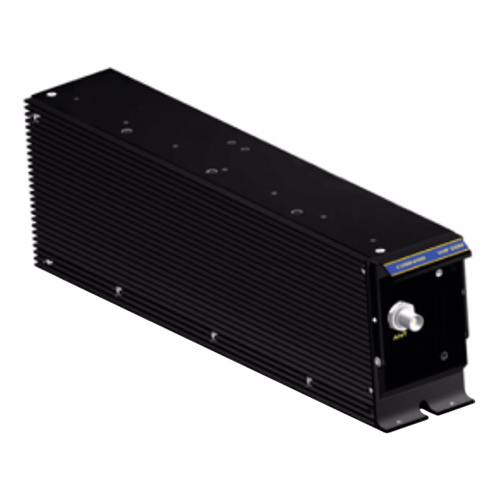

CVC-151 FliteLine VHF Communication Transceiver | 151.975 MHz, 10mW, 25kHz
Product Description
The FliteLine VHF Communication System is an all digital DSP VHF Transceiver, built and designed to ARINC Air Transport specifications. CVC-151 VHF Transceiver is designed to meet the latest ATC environment and all future CNS ATN requirements. The CVC-151 has provisions for VDL Mode 2 and VDL Mode 3. Our FliteLine Communication System features a 20 watt solid-state transmitter and is compliant with 25 kHz or 8.33 kHz spacing. CVC-151 Transceiver architecture is standard ARINC 429 which supports interface to FMS systems and RMS 555 Radio Management System. The CVC-151 Transceiver is totally interchangeable with current Series III VHF Coms.
This FliteLine VHF Communication System (EDMO# CVC-151-3) has an extended frequency range of 118.000–151.975 MHz and a fixed 25 kHz channel.
Features
8.33 and/or 25 kHz Channel Spacing
FM Immunity
Continuous Transmit Capability (at reduced power)
Built-in SELCAL and ACARS Capability
New Color LCD CVC-152 Com Control Display
Or Multi-function Nav/Com CCN-955 CD
Increased System Self-Test and BIT
ARINC 429 Digital Data Bus
New CAN Bus Implementation
118.000–136.975 MHz Standard Frequency Range
118.000–151.975 MHz Extended Frequency Range Option
Reduced Weight and Volume
Provisions for VDL Mode 2 and VDL Mode 3
Specifications
Weight:
3.75 lbs (1.70 kg)
Dimensions:
12.95 x 2.4 x 4.0 in (328.9 x 61.0 x 101.6 mm)
Altitude:
55,000 ft (16,764 m)
Temperature:
-67 °F to 185 °F (-55 °C to 70°C)
Power Requirements:
27.5 VDC, (18–33 VDC)
Current Requirements:
Rx: 0.5 A
Tx: 4.5 A
Frequency Range:
118–151.975 MHz
Audio Output:
10 mW
Product Codes
- Mfr Part No:400-048100-0002
- EDMO #:CVC-151-3
- Brand:CANYON AEROCONNECT
- Category:NAV/COM Aircraft Radios
- ETSO:C37e and C38e
- NSN:5895-01-604-1976
- TSO:C169
