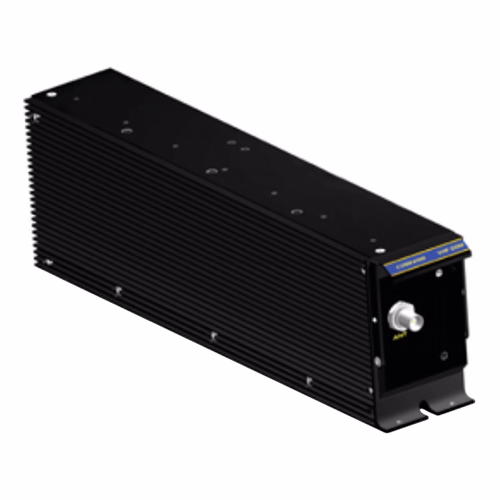

CVC-151 VHF COMM, 136.975 MHz, 10mW AUDIO, 25kHz FIXED

The FliteLine VHF Communication System is an all digital DSP VHF Transceiver, built and designed to ARINC Air Transport specifications. CVC-151 VHF Transceiver is designed to meet the latest ATC environment and all future CNS ATN requirements. The CVC-151 has provisions for VDL Mode 2 and VDL Mode 3. Our FliteLine Communication System features a 20 watt solid-state transmitter and is compliant with 25 kHz or 8.33 kHz spacing. CVC-151 Transceiver architecture is standard ARINC 429 which supports interface to FMS systems and RMS 555 Radio Management System. The CVC-151 Transceiver is totally interchangeable with current Series III VHF Coms. The result is increased customer reliability.

Features

• 8.33 and/or 25 kHz Channel Spacing
• FM Immunity
• Continuous Transmit Capability (at reduced power)
• Built-in SELCAL and ACARS Capability
• New Color LCD CVC-152 Com Control Display
• Or Multi-function Nav/Com CCN-955 CD
• Increased System Self-Test and BIT
• ARINC 429 Digital Data Bus
• New CAN Bus Implementation
• 118.000-136.975 MHz Standard Frequency Range
• 118.000 -151.975 MHz Extended Frequency Range Option
• Reduced Weight and Volume
• Provisions for VDL Mode 2 and VDL Mode 3
