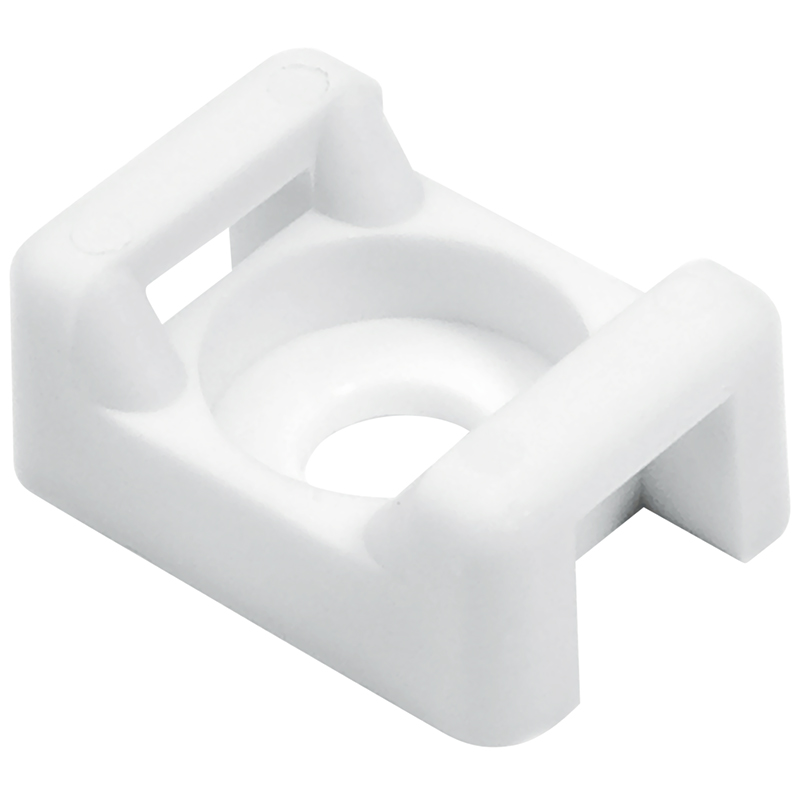

Cable Tie Anchor Mount | White, 0.58 x 0.37 x 0.27 in, 0.19 in Hole Diameter, 0.2 in Max Tie Width | Bag of 100ea.
Product Description
The CTM series cable tie mounts are designed to provide stability to wire bundles. These mounts can accommodate miniature, intermediate, or standard cross-section cable ties. Each mount is secured with a single screw. Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties.
Features
No product features currently available.
Specifications
Dimensions:
0.58 x 0.37 x 0.27 in (14.7 x 9.4 x 6.9 mm)
Fixation Method:
Screw Mount
Maximum Cable Tie Width:
0.2 in (5 mm)
Mounting Hole Diameter:
0.19 in (4.8 mm)
Material:
Polyamide 6.6 (PA66)
Operating Temperature:
-40 to 185°F (-40 to 85°C)
Reach Compliant (Article 33):
Yes
ROHS Compliant:
Yes
Certification/Specification:
UL, ANSI/UL 1565 UL, ANSI/UL 62275 UL, ANSI/UL 746B
Product Codes
- Mfr Part No:CTM110C2
- EDMO #:CTM110C2
- Brand:HELLERMANNTYTON
- Category:Wire, Cable & Accessories
