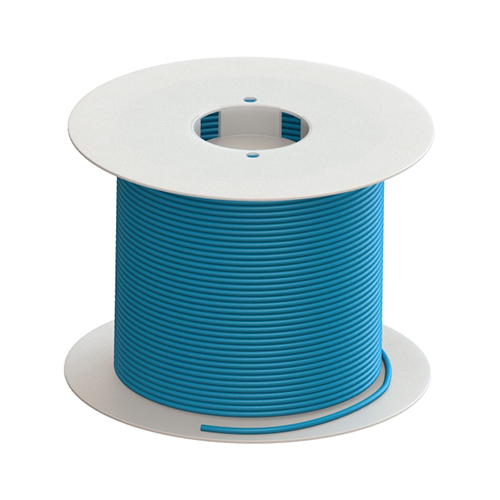

Test Lead Wire | Blue, 50 meter spool, 50 gauge, ROHS compliant

CT2885-650

CAL TEST ELECTRONICS

CALL FOR PRICING
Available To Order
EDMO#CT2885-650
MFR#CT2885-6-50

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

Ideal test lead wire for building Do-It-Yourself (DIY) test leads, patch cords, and test fixtures. Silicone is the best test lead jacket material, combining high flexibility, even at low temperatures, with resistance to burns and chemicals.  The jacket features a durable colored outer layer with an inner white layer for cut or wear visibility.  The conductor is highly stranded soft bare copper for additional flexibility.

This test lead wire (EDMO# CT2885-650) comes on a 50 meter spool, is 50 gauge, and has black insulation.

Features

  • 15 AWG (1.50 mm2) Silicone jacket, 25 A
  • Meets the safety requirements of IEC 61010-031 1000 V CAT IV
  • Available in 3 Lengths, 10m, 50m & 100m
  • Available in 6 colors

Specifications

IEC Rating:
1,000 V CAT IV

Current Rating:
25A, max.

Jacket Material:
Silicone

Connector Area:
1.5 mm2

Wire Gauge:
15 AWG

Stranding:
392 x 0.07 mm

O.D.:
3.8 mm(0.150in)

RoHS:
2011/65EU) Compliant

Product Codes

  • Mfr Part No:CT2885-6-50
  • EDMO #:CT2885-650
  • Brand:CAL TEST ELECTRONICS
  • Category:Wire & Cable Testers
