CM-S-389T MIL-DTL-26500 and 83723 Series III Adapter Tool Set | Plugs, Shell Sizes 8–28
Product Description
The central element of the DMC Beta connector accessory tool product line is the adapter tool. This unique device is configured in such a manner as to mate perfectly with the corresponding circular connector keying pattern.

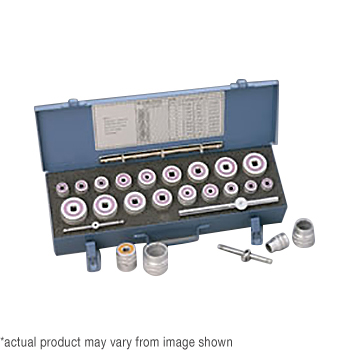

This Adapter Tool Set (EDMO# CM-S-837) is for MIL-DTL-26500 and MIL-DTL-83723 Series 3 plugs. There are 22 adapter tools in this set and it covers shell sizes 8–28.
Features
- For MIL-DTL-26500 and MIL-DTL-83723 Series 3 plugs
- Includes 22 adapter tools, shell sizes 8–28
Specifications
Weight:
7.56 lbs
Connector Type:
Plugs
Adapter Shell Sizes:
8–28
Adapter Dimensions:
8: 1.50 x 0.53 x 0.81
10: 1.50 x 0.64 x 0.88
12: 1.50 x 0.82 x 1.00
14: 1.50 x 0.88 x 1.13
16: 1.50 x 1.00 x 1.25
18: 1.50 x 1.12 x 1.36
20: 1.50 x 1.25 x 1.50
22: 1.50 x 1.37 x 1.63
24: 1.50 x 1.50 x 1.75
28: 1.50 x 1.74 x 2.00
Adapter Driver Dimensions:
0.25 in (8, 10); 0.375 in (12, 14, 16, 18, 20, 22, 24, 28)
Adapter Keying Positions:
8A: N, 8, 9
8B: 6, 7
8C: N, 8, 9
8D: 6, 7
10A: N, 8, 9
10B: 6, 7, 10
12A: N, 6, 8
12B: 7, 9, 10
14A: N, 6, 8
14B: 7, 9, 10
16A: N, 6, 8
16B: 7, 9, 10
18A: N, 6, 8
18B: 7, 9, 10
20A: N, 6, 8
20B: 7, 9, 10
22A: N, 6, 8
22B: 7, 9, 10
24A: N, 6, 8
24B: 7, 9, 10
28A: N, 6, 8
28B: 7, 9, 10
Product Codes
- Mfr Part No:CM-S-837
- EDMO #:CM-S-837
- Brand:DANIELS MFG
- Category:Tools & Cases
