CM-S-389T MIL-DTL-38999 Series III Adapter Tool Set | Receptacles, Shell Sizes 9–25
Product Description
The central element of the DMC Beta connector accessory tool product line is the adapter tool. This unique device is configured in such a manner as to mate perfectly with the corresponding circular connector keying pattern.

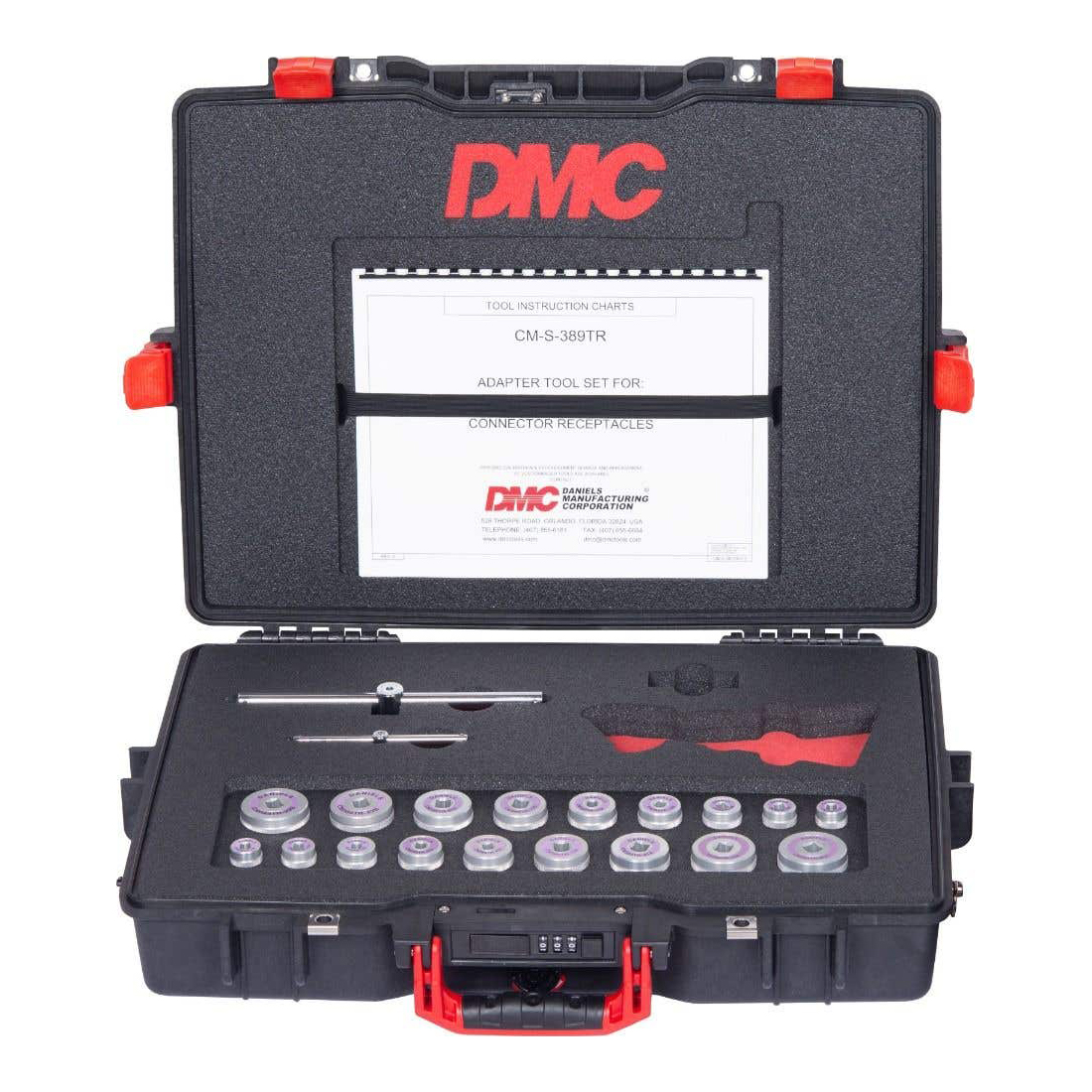

This Adapter Tool Set (EDMO# CM-S-389TR) is for MIL-DTL-38999 Series 3 receptacles. There are 18 adapter tools in this set and it covers shell sizes 9–25.
Features
- For MIL-DTL-38999 Series 3 receptacles
- Includes 18 adapter tools, shell sizes 9–25
Specifications
Weight:
7 lbs
Connector Type:
Receptacles
Adapter Shell Sizes:
9–25
Adapter Dimensions:
9: 1.500 x 0.435 x 0.812; 0.315 I.D.
11: 1.500 x 0.562 x 0.875; 0.433 I.D.
13: 1.500 x 0.675 x 1.000; 0.547 I.D.
15: 1.500 x 0.800 x 1.125; 0.672 I.D.
17: 1.500 x 0.925 x 1.250; 0.797 I.D.
19: 1.500 x 1.030 x 1.375; 0.886 I.D.
21: 1.500 x 1.154 x 1.500; 1.010 I.D.
23: 1.500 x 1.280 x 1.625; 1.135 I.D.
25: 1.500 x 1.405 x 1.750; 1.260 I.D.
Adapter Driver Dimensions:
0.25 in (9, 11, 13, 15, 17); 0.375 in (19, 21, 23, 25)
Adapter Keying Positions:
9A: N
9B: A, B, C, D, E
11A: N
11B: A, B, C, D, E
13A: N
13B: A, B, C, D, E
15A: N
15B: A, B, C, D, E
17A: N
17B: A, B, C, D, E
19A: N
19B: A, B, C, D, E
21A: N
21B: A, B, C, D, E
23A: N
23B: A, B, C, D, E
25A: N
25B: A, B, C, D, E
Product Codes
- Mfr Part No:CM-S-389TR
- EDMO #:CM-S-389TR
- Brand:DANIELS MFG
- Category:Tools & Cases
