CM-S-389T MIL-DTL-38999 Series III Adapter Tool Set | Plugs, Shell Sizes 9–25
Product Description
The central element of the DMC Beta connector accessory tool product line is the adapter tool. This unique device is configured in such a manner as to mate perfectly with the corresponding circular connector keying pattern.

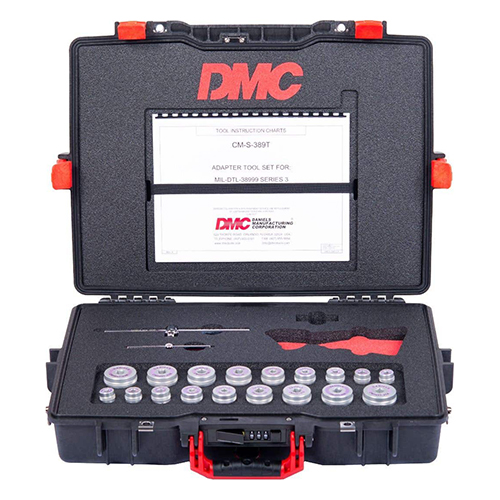

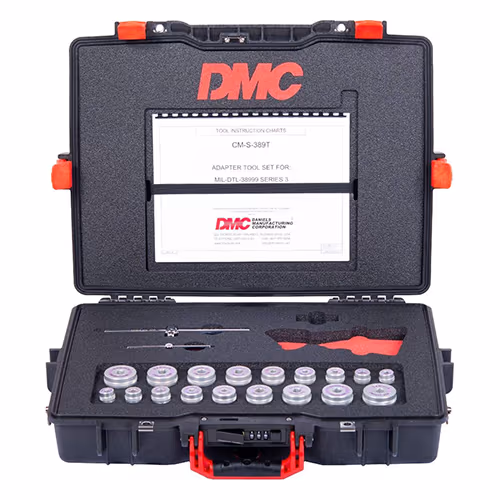

This Adapter Tool Set (EDMO# CM-S-389T) is for MIL-DTL-38999 Series 3 plugs. There are 18 adapter tools in this set and it covers shell sizes 9–25.
Features
- For MIL-DTL-38999 Series 3 plugs
- Includes 18 adapter tools, shell sizes 9–25
Specifications
Weight:
7 lbs
Connector Type:
Plugs
Adapter Shell Sizes:
9–25
Adapter Dimensions:
9: 1.500 x 0.573 x 0.812
11: 1.500 x 0.689 x 0.875
13: 1.500 x 0.823 x 1.000
15: 1.500 x 0.948 x 1.125
17: 1.500 x 1.082 x 1.250
19: 1.500 x 1.184 x 1.375
21: 1.500 x 1.309 x 1.500
23: 1.500 x 1.434 x 1.625
25: 1.500 x 1.559 x 1.750
Adapter Driver Dimensions:
0.25 in (9, 11, 13, 15, 17); 0.375 in (19, 21, 23, 25)
Adapter Keying Positions:
9A: N, C, D
9B: A, B, E
11A: N, D, E
11B: A, B, C
13A: N, D, E
13B: A, B, C
15A: N, D, E
15B: A, B, C
17A: N, A, B
17B: C, D, E
19A: N, A, B
19B: C, D, E
21A: N, A, B
21B: C, D, E
23A: N, A, B
23B: C, D, E
25A: N, A, B
25B: C, D, E
Product Codes
- Mfr Part No:CM-S-389T
- EDMO #:CM-S-389T
- Brand:DANIELS MFG
- Category:Tools & Cases
