CI 5120 VOR/LOC/GS Signal Splitter | 108–118 MHz & 329–335 MHz, 50 Ω, BNC Female Connectors

Product Description

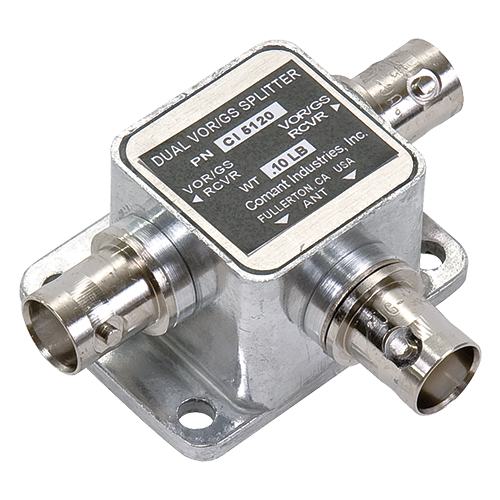

The CI 5120 VOR/LOC/GS signal splitter (EDMO# CI-5120) is a four-through-hole-mount style splitter with BNC ports. This splitter is designed for avionics units that require separate NAV signal inputs and splits a single VOR/LOC/GS signal into two separate VOR/LOC/GS signals. It is suitable for internal aircraft mounting.

Specifications

• Weight:
  0.1 lb
• Height:
  0.97 in
• Frequency:
  108–118 MHz & 329–335 MHz
• VSWR:
  1.5:1
• Isolation:
  20 dB
• Insertion Loss:
  1.0 dB
• Impedance:
  50 Ω
• Amplitude Balance:
  ± 50 dB
• Phase:
  ± 5180º ± 5º
• Power Split:
  3 dB
• Material:
  Aluminum
• Finish:
  Aluminum
• Connector:
  BNC Female
• Mounting Location:
  Internal

Product Codes

• Mfr Part No
  CI 5120
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
