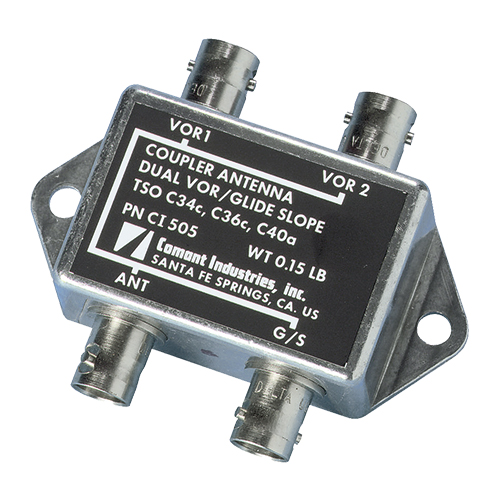

CI 505 VOR/LOC/GS Signal Coupler/Diplexer | 108–118 MHz & 329–335 MHz, 50 Ω, BNC Female Connectors

Product Description

The CI 505 VOR/LOC/GS signal coupler/diplexer (EDMO# CI-505) is a two-through-hole-mount style coupler/diplexer with BNC ports. This coupler/diplexer converts a single VOR/LOC/GS antenna signal into two separate VOR/LOC and one GS signal output. It is designed for avionics units that require a split NAV signal and is suitable for internal aircraft mounting.

Specifications

• Weight
  0.20 lbs
• Height:
  0.88 in
• Frequency:
  108–118 MHz & 329–335 MHz
• VSWR:
  1.5:1
• Isolation:
  20 dB (min) between any receiver port
• Insertion Loss:
  0.5 dB
• Impedance:
  50 Ω
• Material:
  Die Cast Aluminum
• Finish:
  Aluminum
• Connectors:
  BNC Female
• Mounting Locations:
  Internal
• FAA TSO:
  C34c, C36c, C40a

Product Codes

• Mfr Part No
  CI-505
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34c,C36c,C40a

Documentation

• CI 505 Data Sheet
• CI 505 Product Drawing
