CI 420-10 XM Weather & Radio Antenna | 2332.5–2345.0 MHz, 50 Ω, 25 dB Gain, TNC Female Connector
Product Description

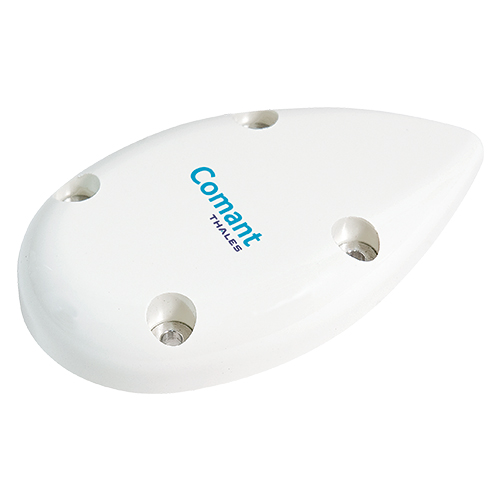

The CI 420-10 antenna (EDMO# CI-420-10) is a four-through-hole-mount style XM weather & radio teardrop antenna with a TNC port. This antenna is designed to operate with XM systems with shorter coax cable runs such as Garmin and Heads Up XM weather data systems. It is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.
Features
- Covers the 2332.5–2345.0 MHz XM weather & radio frequency
- Nominal 25 dB gain
- LHCP polarization
- Hemispherical radiation pattern
- TNC female connector
- For use on light and heavy fixed-wing single-engine and multi-engine aircraft and business jets
Specifications
Weight:
4.2 oz
Frequency:
2332.5–2345.0 MHz
VSWR:
1.5:1
Polarization:
LHCP
Radiation Pattern:
Hemispherical
Impedance:
50 Ω
Gain:
25 dB ± 2 dB
DC Voltage:
3.6–24 VDC
DC Current:
35–55 mA
Noise Figure:
2.7 dB
Finish:
White Polyurethane Enamel
Connector:
TNC Female
RTCA Environmental:
DO-160D
Product Codes
- Mfr Part No:CI 420-10
- EDMO #:CI-420-10
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
