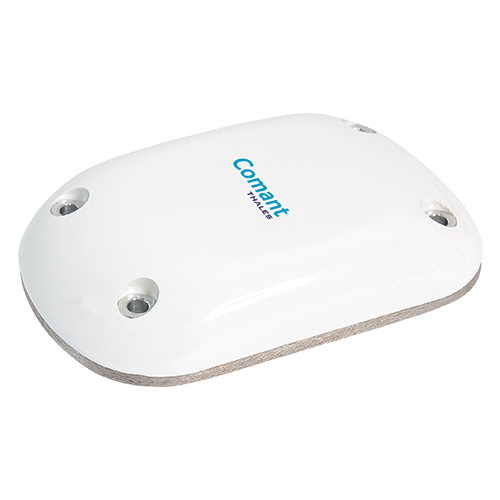

CI 401-221 Non-WAAS GPS Antenna | 1575.42 ± 3 MHz, 50 Ω, 17 dB Gain, TNC Female Connector
Product Description
The CI 401-221 antenna (EDMO# CI-401-221) four-through-hole-mount style non-WAAS GPS rectangle antenna (ARINC 743A footprint) with a TNC port. This antenna is GPS C144 certified for class 1 LNAV approaches (lateral navigation only) and is designed to be used with 17 dB gain GPS panel mount systems. It is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.
Features
- 1575.42 MHz frequency
- Nominal 17 dB Gain
- RHCP polarization
- Hemispherical radiation pattern
- Stand-alone antenna
- TNC female connector
Specifications
Weight:
6.2 oz
Frequency:
1575.42 ± 3 MHz
VSWR:
1.5:1
Polarization:
RHCP
Radiation Pattern:
Hemispherical
Output Impedance:
50 Ω
Gain:
17 ± 3 dB
DC Voltage:
4 to 24 V
DC Current:
25–40 mA
Noise Figure:
3.8 dB
Selectivity:
-35 dB @ Satcom 1626.5 MHz
Finish:
White Polyurethane Enamel
Connector:
TNC Female
'O' Ring Gasket:
70486
FAA TSO:
C144
RTCA Environmental:
DO-160D
Product Codes
- Mfr Part No:CI 401-221
- EDMO #:CI-401-221
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
