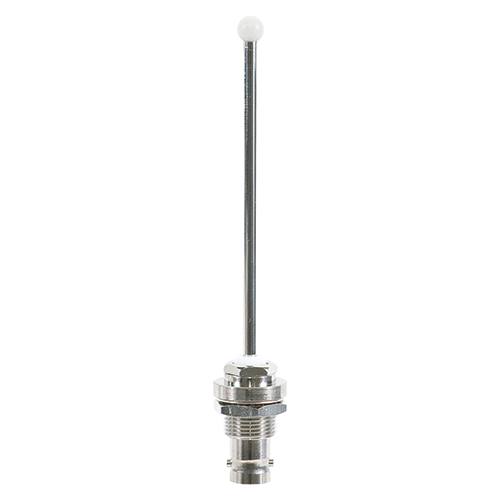

CI 306 UHF Communications Antenna | 800–870 MHz, 50 Ω, BNC Female Connector
Product Description
The CI 306 antenna (EDMO# CI-306) is a single-hole-mount style UHF Communication stub antenna with a BNC port. This antenna is designed to support the 800–870 MHz Public Safety range and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft.
Features
- Covers 800-870 MHz Public Safety frequencies
- Vertical polarization
- Equivalent of 1/4 wave stub radiation pattern
- BNC female connector
- Designed for light fixed-wing single-engine and multi-engine aircraft
Specifications
Weight:
0.15 lb
Height:
7.0 in
Frequency:
800–870 MHz
VSWR:
1.5:1
Polarization:
Vertical
Radiation Pattern:
Typical of 1/4 Wave Stub
Impedance:
50 Ω
RF Power:
50 W
Material:
Nickel Plated Brass
Finish:
Tin-Nickel Alloy
Connector:
BNC Female
Temperature:
-55ºC to 70ºC
Altitude:
25,000 ft
Product Codes
- Mfr Part No:CI 306
- EDMO #:CI-306
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
- ECCN:7A994
- SCHEDULE B CODE:8529.10.4000
