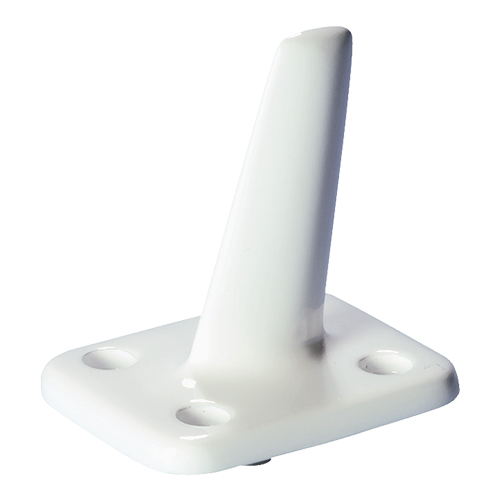

CI 305 L-Band DME Transponder Antenna | 960–1225 MHz, 50Ω, BNC Female Connector

CI 305 L-Band DME Transponder Antenna | 960–1225 MHz, 50Ω, BNC Female Connector

COMANT THALES

Call For Pricing
Available to order
EDMO # CI-305
MFR Part # CI 305
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The CI-305 antenna (EDMO# CI-305) four-through-hole-mount style transponder blade antenna with a BNC connector. This antenna has a frequency range that supports both ADS-B Out and DME applications and is suitable for either top or bottom mounting on light fixed-wing single-engine and multi-engine aircraft.

Features

  • Covers 960–1220 MHz frequencies for ADS-B Out and DME applications
  • Vertical polarization
  • Equivalent to 1/4 wave stub radiation pattern
  • BNC female connector
  • Designed for light fixed-wing single-engine and multi-engine aircraft

Also Purchased

Specifications

  • Weight:
    0.3 lb
  • Height:
    2.85 in
  • Frequency:
    960–1225 MHz
  • VSWR:
    1.8:1
  • Polarization:
    Vertical
  • Radiation pattern:
    Equivalent to 1/4 wave stub
  • Impedance:
    50 Ω
  • RF power:
    1.0 KW (peak)
  • Finish:
    White Polyurethane Enamel
  • Connector:
    BNC Female
  • Temperature Range:
    -55ºC to 55ºC
  • Altitude:
    45,000 ft
  • FAA TSO:
    C66b, C74c
  • RTCA Environmental:
    DO-160A

Related Products

Product Codes

  • Mfr Part No
    CI 305
  • ECCN
    7A994
  • PROAPP
    PT2316NM
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C66b,C74c
