CI 295-200 ComDat VHF/UHF SAR Blade Antenna | 136–174 MHz & 380–520 MHz, 50 Ω, BNC & TNC Connectors
Product Description

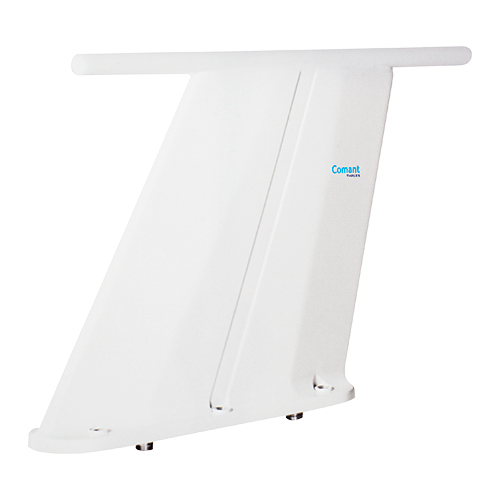

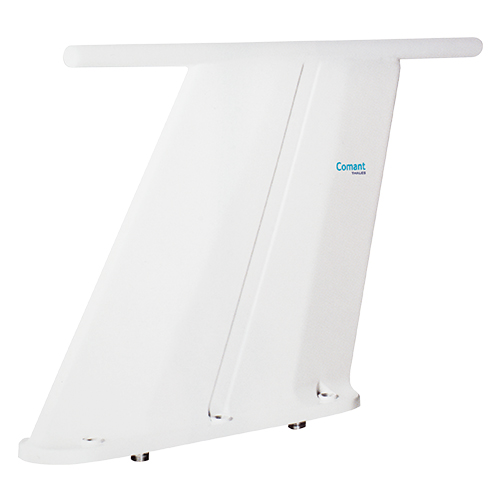

The CI 295-200 SAR antenna (EDMO# CI-295-200) is a six-through-hole-mount style VHF/UHF blade antenna with BNC and TNC ports. This antenna covers both VHF and lower UHF communication frequencies for Public Service bands by Search and Rescue teams (SAR). It is suitable for either top or bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.
Features
- Covers 136–174 MHz (VHF) and 380–520 MHz (UHF) communication frequencies for Public Service bands by Search and Rescue teams (SAR)
- Vertical polarization
- Omnidirectional radiation pattern
- BNC (VHF) and TNC (UHF) connectors
- Designed for light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters
Specifications
Weight:
2.00 lb
Connectors:
VHF: BNC
UHF: TNC
Frequency:
VHF: 136–174 MHz
UHF: 380–520 MHz
VSWR:
3.0:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance:
50 Ω
RF Power:
10 Watts CW
RTCA Environmental:
DO-160G
Product Codes
- Mfr Part No:CI 295-200
- EDMO #:CI-295-200
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
