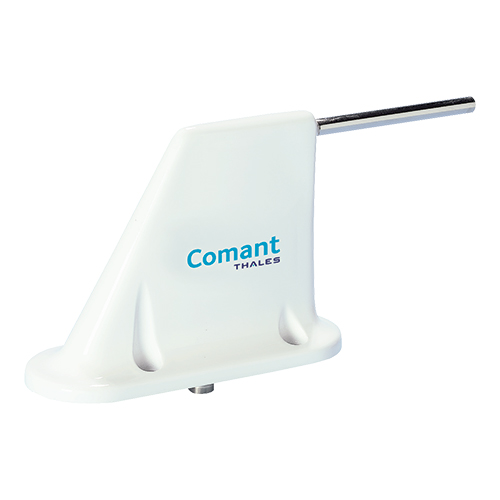

CI 275 UHF Radiotelephone Blade Antenna | 406–512 MHz, 50 Ω, BNC Connector

Product Description

The CI 275 antenna is a four-through-hole-mount style UHF Communication blade antenna with a BNC port. This antenna is designed to support the 406–512 MHz frequency range and is suitable for bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

This CI 275 series antenna (EDMO# CI-275) has a BNC connector, covers 406-512 MHz frequencies, and is rated to 600 knots at 25,000 ft.

Specifications

• Weight:
  0.5 lb
• Height:
  3.6 in
• Frequency:
  406–512 MHz
• VSWR:
  2.0:1
• Polarization:
  Vertical
• Radiation Pattern:
  Typical 1/4 wave stub
• Impedance:
  50 Ohms
• RF Power:
  100 Watts Max. Average
• Material:
  Nickel Plated
• Finish:
  White Polycarbonate
• Connector:
  BNC

Product Codes

• Mfr Part No
  CI 275
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 275 Data Sheet
• CI 275 Product Drawing
