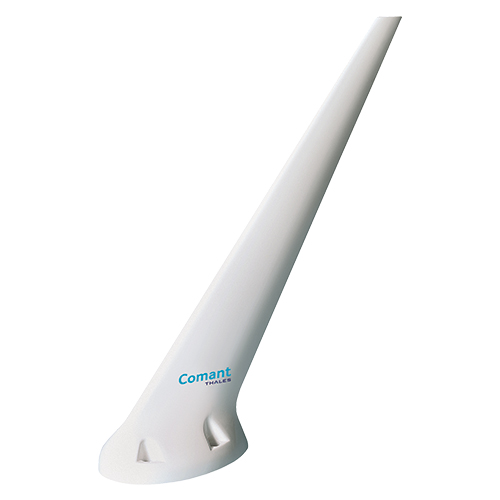

CI-268-60 VHF Communication Blade Antenna | 118–137MHz, 50 Ω, BNC Female Connector
Product Description
The CI 268-60 antenna (EDMO# CI-268-60) is a four-through-hole-mount style VHF communication blade antenna with an offset BNC port. This antenna is suitable for either top or bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.
Features
- 118-137 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Nickel plated aluminum base plate
- Integral Nitrile O ring for pressurized applications
- Same footprint and offset connector location as CI 238
Specifications
Weight:
1.25 lb
Height:
14.1 in
Frequency:
118–137 MHz
VSWR:
2.9:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50Ω
Power (RF):
50 Watts
Harmonic Rejection:
80 dB typical
Material:
Molded Glass Filled Nylon
Finish:
Glossy White Polyurethane Enamel
Connector:
BNC Female
Temperature:
-55 to 85ºC
Altitude:
35,000 ft
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
Product Codes
- Mfr Part No:CI-268-60
- EDMO #:CI-268-60
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
- ECCN:7A994
- PROAPP:PT2316NM
- SCHEDULE B CODE:8529.10.4000
- TSO:C37d,C38d Incomplete System
