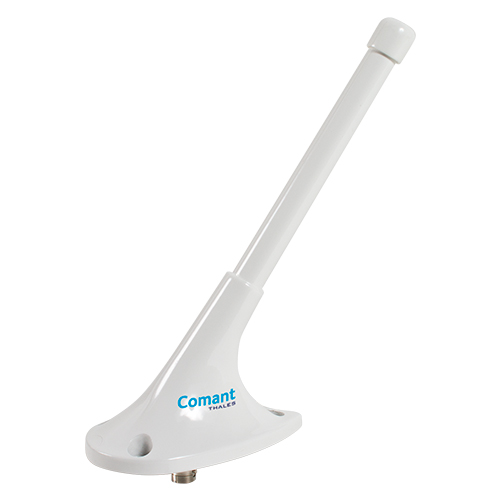

CI 200 UHF Communications Short Whip Antenna | 450–470 MHz, 50 Ω, BNC Female Connector
Product Description
The CI 200 antenna (EDMO# CI-200) is a three-through-hole-mount style UHF Communication short whip antenna with a BNC port. This antenna is designed to support the 450–470 MHz frequency range and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft and helicopters.
Features
- 450–470 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Molded base
- 3-hole mounting
- Enclosed radiating element
- High strength tapered glass laminate housing
Specifications
Weight:
0.50 lb
Height:
6.125 in
Frequency:
450–470 MHz
VSWR:
1.5:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance:
50 Ω
RF Power:
30 W
Material:
Aluminum Alloy/Fiberglass Whip
Finish:
Glossy White
Connector:
BNC Female
Temperature Range:
-55ºC to 55ºC
Altitude:
30,000 ft
Product Codes
- Mfr Part No:CI 200
- EDMO #:CI-200
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
