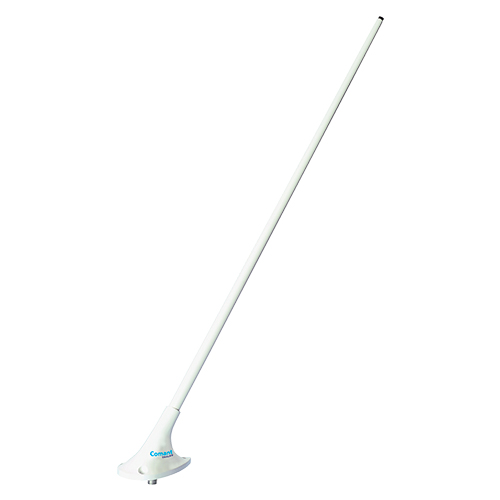

CI 175 VHF Communication Whip Antenna | 118-137 MHz, 50 Ω, BNC Female, 3 Hole Mount

Product Description

The CI 175 antenna (EDMO# CI-175) is a three-through-hole-mount style VHF communication whip antenna with a BNC port. This antenna features the smallest footprint in the VHF communication product line and is suitable for top mounting on light fixed-wing single-engine aircraft and helicopters.

Specifications

• Weight:
  0.5 lb
• Height:
  18.75 in
• Frequency:
  118-137 MHz
• VSWR:
  2.5:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance RF:
  50 Ω
• Power RF:
  50 W
• Material:
  Cast Housing/Fiberglass Whip
• Finish:
  White Polyurethane Enamel
• Connector:
  BNC Female
• Temperature Range:
  -55°C to 85°C
• Altitude:
  50,000 ft
• Air Speed:
  250 Knots TAS
• Federal Specifications:
  FAA TSO C37d, C38d RTCA Environmental DO-160D

Product Codes

• Mfr Part No
  CI 175
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• CI 175 Data Sheet
• CI 175 Product Drawing
