CI 158C VOR/LOC/GS V Dipole Antenna | 108–118 MHz & 329–335 MHz, 50 Ω, BNC Connectors, 2-Hole

Product Description

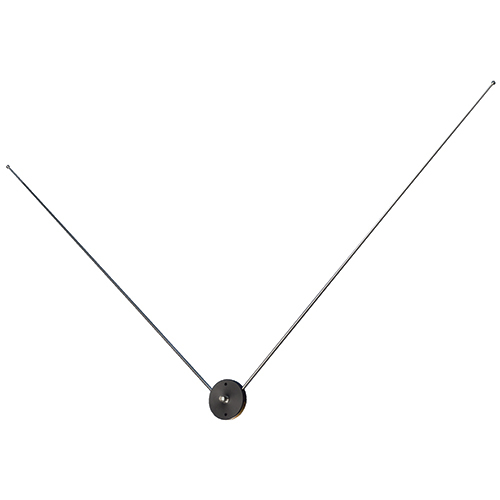

The CI 158C antenna (EDMO# CI-158C) is a two-through-hole-mount style VOR/LOC/GS V dipole antenna with a BNC port. This antenna features a single navigation output that can be used in conjunction with signal diplexers to achieve the desired avionics signal input. It is designed with detachable radiator elements and is suitable for mounting on the aircraft vertical stabilizer on light fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.50 lb
• Height:
  17-5/8 in
• Frequency:
  108–118 MHz (VOR/LOC) 329–335 MHz (GS)
• VSWR:
  3.0:1
• Polarization:
  Horizontal
• Radiation Pattern:
  Dipole
• Impedance:
  50Ω
• Power RF:
  Receive Only
• Finish:
  Black Housing/Stainless Steel Whips
• Connector:
  BNC
• Temperature:
  -55ºC to 85ºC
• Altitude:
  25,000 ft
• Mounting:
  Two-hole mounting pattern
• FAA TSO:
  C34c, C36c, C40a
• RTCA MOPS:
  DO-192, DO-195, DO-196
• RTCA Environmental:
  DO-160

Product Codes

• Mfr Part No
  CI 158C
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34c,C36c,C40a

Documentation

• CI 158C Data Sheet
• CI 158C Product Drawing
