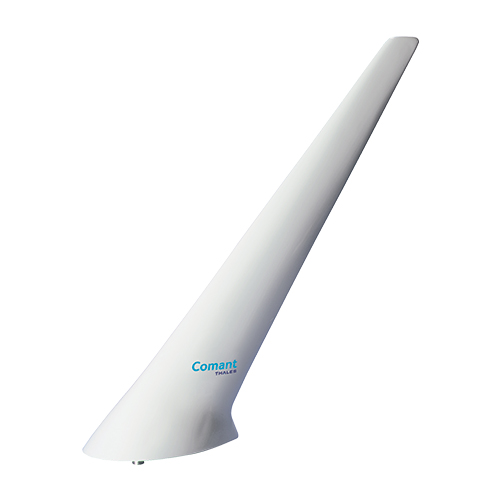

CI 139 VHF Communications Blade Antenna | 118–137MHz, 50 Ω, BNC Female
Product Description
The CI 139 antenna (EDMO# CI-139) is a four-internal-hole-mount style VHF communication blade antenna with a BNC port. This antenna is equivalent to the CI 119 VHF communications blade antenna except for the BNC connector located at the centerline of the antenna. It is suitable for either top or bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.
Features
- 118-137 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Valox 420 housing
- Polyurethane enamel finish
- BNC female connector
Specifications
Weight:
1.25 lb
Height:
13.00 in
Frequency:
118–137 MHz
VSWR:
2.9:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50 Ω
Power (RF):
25 W
Finish:
Glossy White
Connector:
BNC Female
Temperature Range:
-55ºC to +85ºC
Altitude:
50,000 ft
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
Gasket:
C13904 Cork Neoprene
Product Codes
- Mfr Part No:CI 139
- EDMO #:CI-139
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
