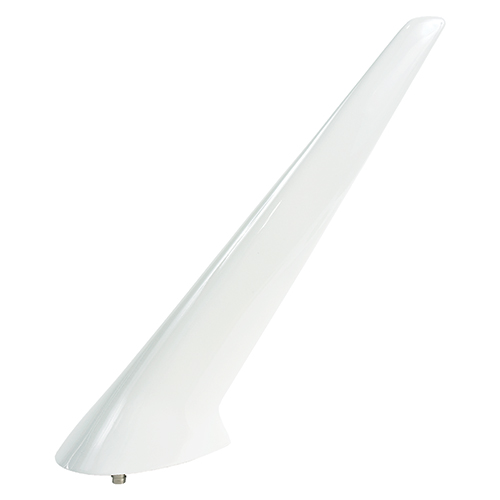

CI 138 VHF Communications Blade Antenna | 118–137 MHz, 50 Ω, Offset BNC Female Connector

Product Description

The CI 138 antenna (EDMO# CI-138) is a four-internal-hole-mount style VHF communication blade antenna with offset BNC port. This antenna is equivalent to the CI 119 except for the mounting hole pattern and BNC connector location. It is suitable for either top or bottom mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and helicopters.

Specifications

• Weight:
  1.25 lbs
• Height:
  13 in
• Frequency:
  118–137 MHz
• VSWR:
  2.9:1 Max
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• Power:
  25 W
• Material:
  Valox 420
• Finish:
  Glossy White
• Connector:
  Offset BNC Female
• Temperature:
  -55ºC to 85ºC
• Altitude:
  50,000 ft
• FAA TSO:
  C37d, C38d
• RTCA Environmental:
  DO-160D
• Gasket:
  C13804 Cork Neoprene

Product Codes

• Mfr Part No
  CI-138
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• CI 138 Data Sheet
• CI 138 Product Drawing
