CI 120-4 VOR/LOC/GS Power Combiner | 108-118 MHz & 329-335 MHz, 50 Ω, BNC Female Connector

Product Description

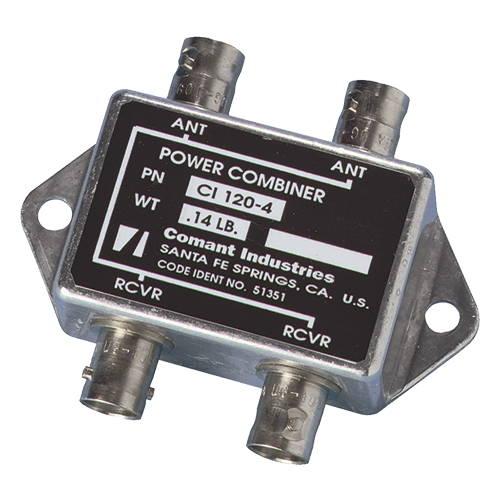

The CI 120-4 power combiner (EDMO# CI-120-4) is a two-through-hole-mount style power combiner with BNC ports that combines two VOR/LOC/GS antenna signals into a dual coaxial cable run for two VHF Nav inputs. This combiner is designed as standard equipment with the CI 120-200G/S VOR/LOC/GS VHF blade antenna set and is suitable for internal aircraft mounting.

Specifications

• Weight:
  0.14 lb
• Height:
  0.90 in
• Frequency:
  108–118 MHz 329–335 MHz
• VSWR:
  1.5:1, max
• Power Split:
  6 dB
• Isolation (Between Ports):
  20 dB
• Insertion Loss:
  1.5 dB
• Amplitude Balance:
  ± 0.5 dB
• Impedance:
  50 Ω
• Phase (Between Ports):
  180º ± 5
• Construction:
  Die Cast Aluminum
• Finish:
  Aluminum
• Connector:
  BNC Female
• Mounting Location:
  Internal

Product Codes

• Mfr Part No
  CI 120-4
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  TSOC34E,C36E,C40C,SUBCOMPONENT OF CI-120-200G/S
