CI-120-1 Single Blade Antenna Element | For CI-120 G/S

Product Description

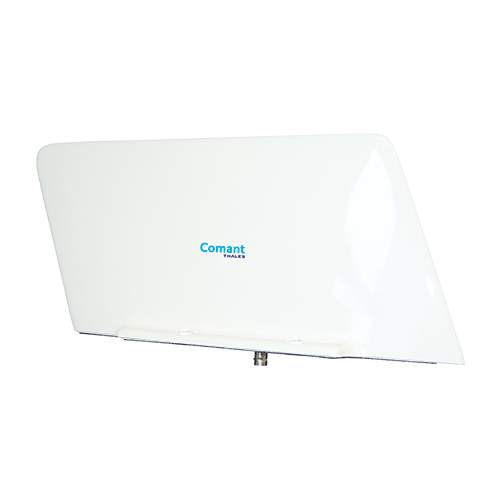

The CI 120-1 is a single VOR/GS navigation antenna (for use with the CI-120 G/S) that provides optimum VOR performance when used for area navigation. The antenna system is qualified for use on single, twin, jet and helicopter aircraft. Also provides glide slope reception capability.

This antenna features a single BNC connector output, two coax interconnect cables and a signal combiner with single BNC connector output providing for a single cable run to the avionics installation.

Specifications

• Weight:
  1.4 lb
• Height:
  6 in Max
• Frequency:
  101-118 MHz (VOR/LOC) 329-335 MHz (GS)
• VSWR:
  6.0:1 108-118 MHz (VOR/LOC) 5.0:1 329-335 MHz (GS)
• Polarization:
  Horizontal
• Radiation Pattern:
  Omni Directional
• Impedance RF:
  50 Ohms Nominal
• Power RF:
  Receive Only
• Finish:
  Polyurethane Enamel
• Connector:
  BNC/Single Output combiner
• Temperature:
  -55°C to 85°C
• Altitude:
  50,000 ft
• Airspeed:
  600 Knots TAS @ 25,000 ft
• FAA TSO:
  C34e, C36e, C40c
• RTCA MOPS:
  DO-192, DO-195, DO-196
• RTCA Environmental:
  DO-160D
• Gasket:
  B12014

Product Codes

• Mfr Part No
  CI 120-1
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34e,C36e,C40c: CI 120-1 IS PART OF AN ANTENNA SYSTEM CI120G/S
