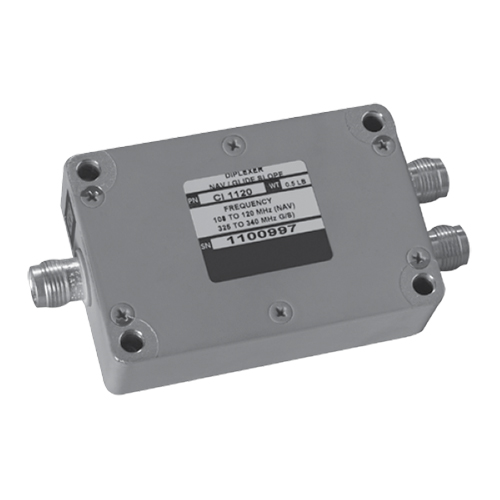

CI 1120 Diplexer | Single VOR/Single GS
Product Description
The CI 1120 diplexer provides operation between a single VOR receiver and a single glide slope receiver from the same VOR/glide slope antenna. Offers polarized VOR and GS output connectors.
Features
- For internal mounting location
- 108-120 MHz & 325-340 MHz frequencies
Specifications
Weight
0.44 lbs. Maximum
Height:
0.812 in. Maximum
Frequency:
108-120 MHz & 325-340 MHz
VSWR:
1.5:1 Maximum
Isolation:
40 dB Min. between frequencies
Insertion Loss:
0.5 dB Maximum / 0.3 dB Typical
Impedance:
50 Ohms
Material:
Die Cast Aluminum
Finish:
Flat Grey Epoxy Paint
Connectors:
TNC (female)
Product Codes
- Mfr Part No:CI-1120-1
- EDMO #:CI-1120-1
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
