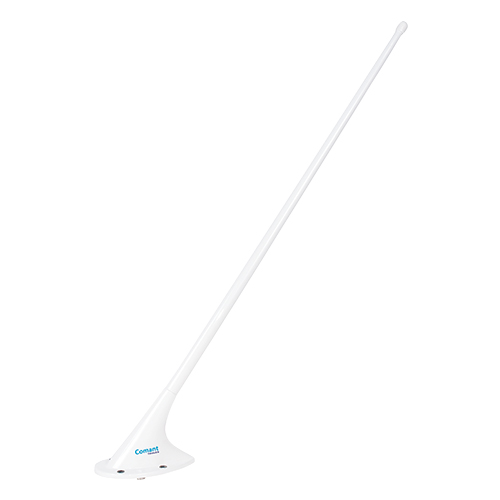

CI 109 VHF Rod Antenna | 118-137 MHz, BNC
Product Description
The CI 109 VHF rod antenna (EDMO# CI-109) incorporates an aerodynamically shaped mounting base and radiator housing that matches the styling of the communication antennas used on the 1968-72 single engine Cessnas. The 109 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
Features
- 118-137 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Aerodynamic base
- 4-hole mounting
- Cast housing
- Excellent electrical characteristics
Specifications
Weight:
0.60 lb
Height:
18-9/16 in.
Frequency:
18-137 MHz
VSWR:
2.5:1 maximum
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50 Ω
Power (RF):
50 W
Temperature:
-55ºC to +85ºC
Altitude:
50,000 ft
Certifications:
FAA TSO C37d, C38d
Product Codes
- Mfr Part No:CI 109
- EDMO #:CI-109
- Brand:COMANT INDUSTRIES
- Category:Antennas & Couplers
- ECCN:7A994
- PROAPP:PT2316NM
- SCHEDULE B CODE:8529.10.4000
- TSO:C37d,C38d
