CI 101 Transponder Antenna | 1030-1090 MHz

Product Description

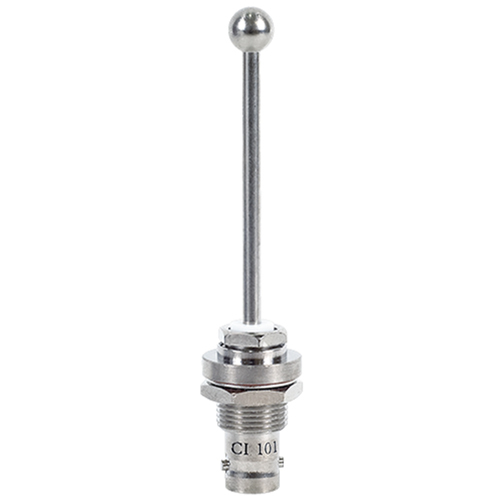

The CI 101 is a top loaded stub, monopole, transponder antenna with a mechanically captivated radiator machined from solid brass for impact resistance. Contact power is made from beryllium copper, and metallic parts are plated with bright nickel for corrosion protection. The CI-101 mounts through a single 0.6-inch diameter hole.

Specifications

• Weight:
  0.06 lb
• Height:
  3.33 in
• Frequency:
  1030 MHz to 1090 MHz
• VSWR:
  1.5:1 with return loss 14 dB
• Polarization:
  Vertical
• Radiation Pattern:
  Equivalent to 1/4 inch wave stub
• Impedance:
  50Ω
• Resistance DC:
  Open circuit
• RF power:
  1 Kw
• Finish:
  Tin-nickel alloy
• Altitude:
  30,000 ft
• FAA TSO:
  C74c
• RTCA Env.:
  DO-1387

Product Codes

• Mfr Part No
  CI 101
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C74c

Documentation

• CI 101 Data Sheet
• CI 101 Product Drawing
