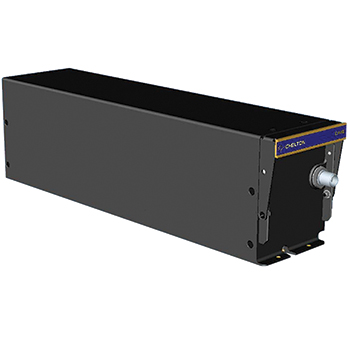

CDM-451 FliteLine DME | King Serial Bus Tuning, Rx 962–1213 MHz, Tx 1025–1150 MHz, 10-40 mW
Product Description
The CDM-451 is an all digital DME. The triple channel scanning DME provides ARINC 429 outputs along with analog outputs for two displays or EFIS MFDs. The CDM-451 Transceiver is compatible with FMS Systems to include auto-tune operation. The third output channel can also provide single DME output to the FMS for independent navigation solution. The Receiver can be tuned via ARINC 429 bus using individual CVN-252 Nav Control Displays, the Wulfsberg Series III RMS 555 Radio Management System, or with Flight Management Systems.
This CDM-451 DME (EDMO# CDM-451-5) features King serial bus tuning.
Features
Simultaneous Scanning of Three Ground Stations
325 Watt Transmitter
Continuous Self-test
Increased Built-in Diagnostics
ARINC429 Digital Data Bus Interface
Analog Outputs
New FliteLine CVN-252 Color Control Display
50% Volume and Weight Savings Compared to Series III DM-441B
Can Be Mounted Using Mounting Tray and Wiring from Series III DM-441B
Specifications
Weight:
3.60 lbs (1.63 kg)
Dimensions:
12.95 x 3.3 x 3.9 in (328.9 x 83.0 x 98.0 mm)
Altitude:
55,000 ft (16,764 m)
Temperature:
-67 °F to 185 °F (-55 °C to 70°C)
Power Requirements:
27.5 VDC, (18–33 VDC)
Current Requirements:
0.5 A (Nominal), 1.8 A (Peak)
Transmit Power:
300 W
Frequency Range:
Rx: 962–1213 MHz
Tx: 1025–1150 MHz
Audio Output:
10–40 mW
Product Codes
- Mfr Part No:400-041181-0012
- EDMO #:CDM-451-5
- Brand:CANYON AEROCONNECT
- Category:NAV/COM Aircraft Radios
- ECCN:7A994
- ETSO:2C66b
- SCHEDULE B CODE:8526.91.00.70
- TSO:C66c
