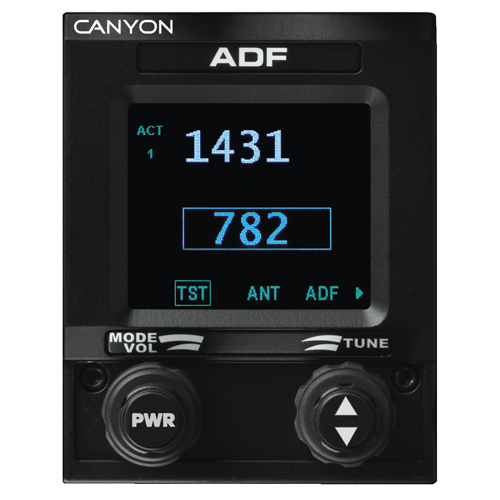

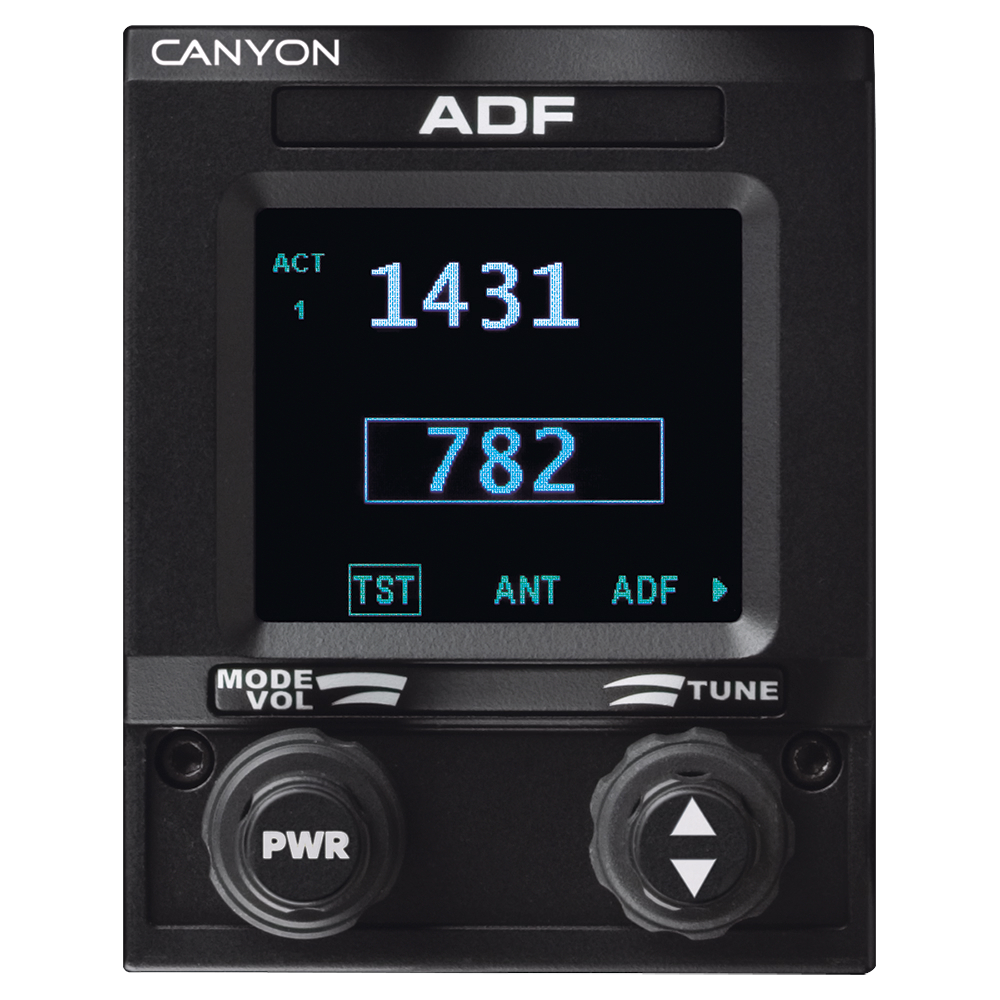

CDF-552 FliteLine™ ADF Control Display | Volume Control, 28 V, Black Bezel
Product Description
FliteLine panel-mount controls install quickly and easily with minimal wiring changes when replacing many older radio controllers. Featuring LCD displays, they are NVG compatible. The CDF-552 ADF Control Display controls dual remote ADF receivers. The display menu includes ADF station, antenna, bearing and BFO information.
This CDF-552 ADF Control Display (EDMO# CDF-552-1) is a 28 V unit with volume control and a black bezel.
Features
Controls dual remote ADF receivers
Display menu includes ADF station, antenna, bearing and BFO information
Specifications
Weight:
0.77 lb (0.35 kg)
Dimensions:
4.29 x 2.50 x 3.15 in (108.97 x 63.5 x 80.01 mm)
Altitude:
55,000 ft (16,764 m)
Temperature:
-4 ºF to 158 ºF (-20 ºF to 55 ºF)
Power Consumption:
280 mA (Max)
Lighting Power Requirements:
5.0 VAC, 5.0 VDC & 28 VCD
Product Codes
- Mfr Part No:400-047552-0000
- EDMO #:CDF-552-1
- Brand:CANYON AEROCONNECT
- Category:NAV/COM Aircraft Radios
- ECCN:7A994
- ETSO:C113
- SCHEDULE B CODE:8537.10.9090
- TSO:C113
